Specifications:
Material |
PET+Poly silicon cell |
Waterproof rating |
IP65 |
Solar energy conversion rate |
20% |
Pmax |
60W |
Vpmax |
18V/12V/9V/6V |
NOCT(nominal operating cell temperature) |
40-85°C |
Size |
440x200x2.5mm |
Max solar input |
12V battery,the highest 23V 24V battery when the highest 46V |
Equalization |
14.4V/14.2V/14.6V |
Float charge |
18V/12V/9V/6V/5V (defaul,adjustable) |
DC output |
18V 2.81A |
USB output |
5V 2.8A (max) |
TYPE-C output |
5v 2.8A |
Self-consume |
<10mA |
Operationg temperature |
-35-60℃ |
Color |
Black |
Feature:
-This product adopts a new conversion method to double the working current of solar output with the same area and power.
-The two-way voltage output of solar energy is divided into 18v & 9v or 12V & 6V by shifting gears. Under the same area of power, the output current of the solar panel doubles, making it possible to charge cars, mobile phones, computers, and batteries in the same environment. Increased efficiency and doubled the charging speed.
-The product is flexible and foldable can be attached to a smooth surface with a certain amplitude (such as the car roof)
How to use:

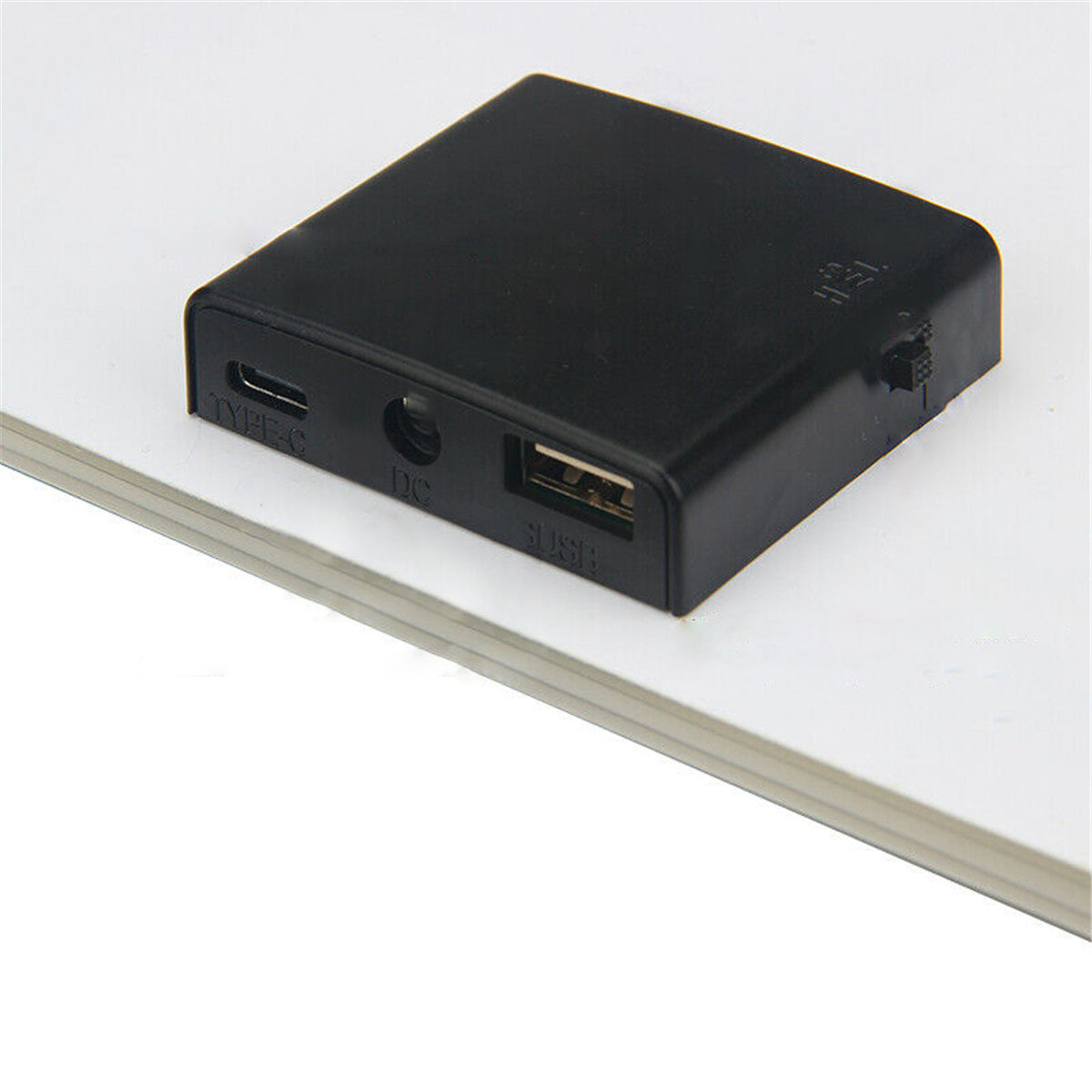

1, Put the solar panel battery facing the sun, andthe LED indicator of the output box turns red. Thenthe solar panel starts to work. USB outlet output 5.2vDcvoltage, DC circular outlet output 18v direct chargingvoltage, (When you have to turn to block switch,H blocking DC output voltage 12v& 18V-L blockingDC output voltage of 6v& 9V
2, This product is not recommended to charge themobile phone directly. It should be used together withthe charging bank, which can be used to charge the mobilehone, tablet computer and other electronic products
3, Connect with the battery, connect the DC alligatorclamp with the output DC voltage of 18v(20V when noload). Note: the positive and negative crocodile clipsshould not be connected or touched in use, which maycause short-line heating or burning

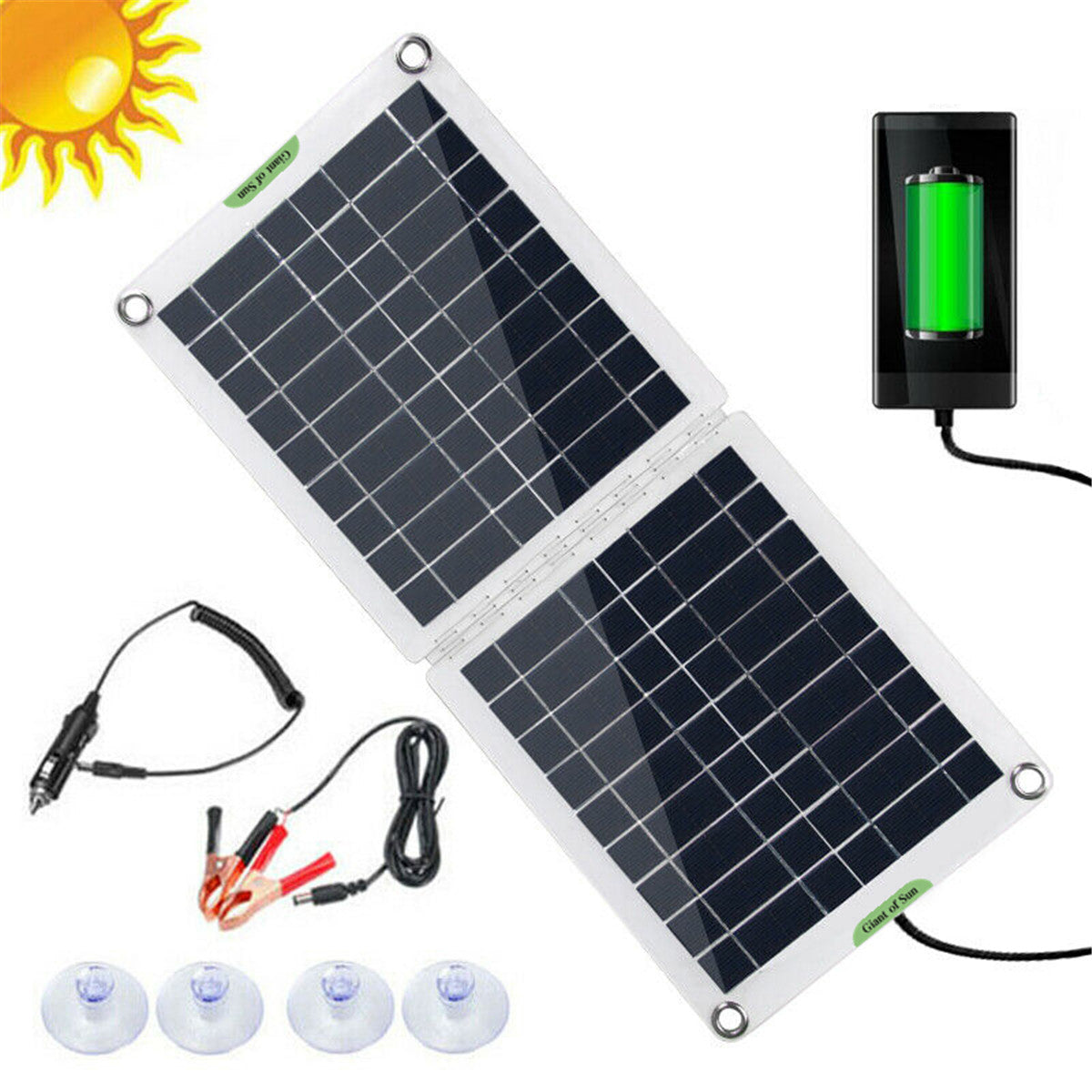

Package Includes:
1 X FoldableSolar Panel
8 X Sucker
1 X Car charger
1 X Battery clip
