Description:

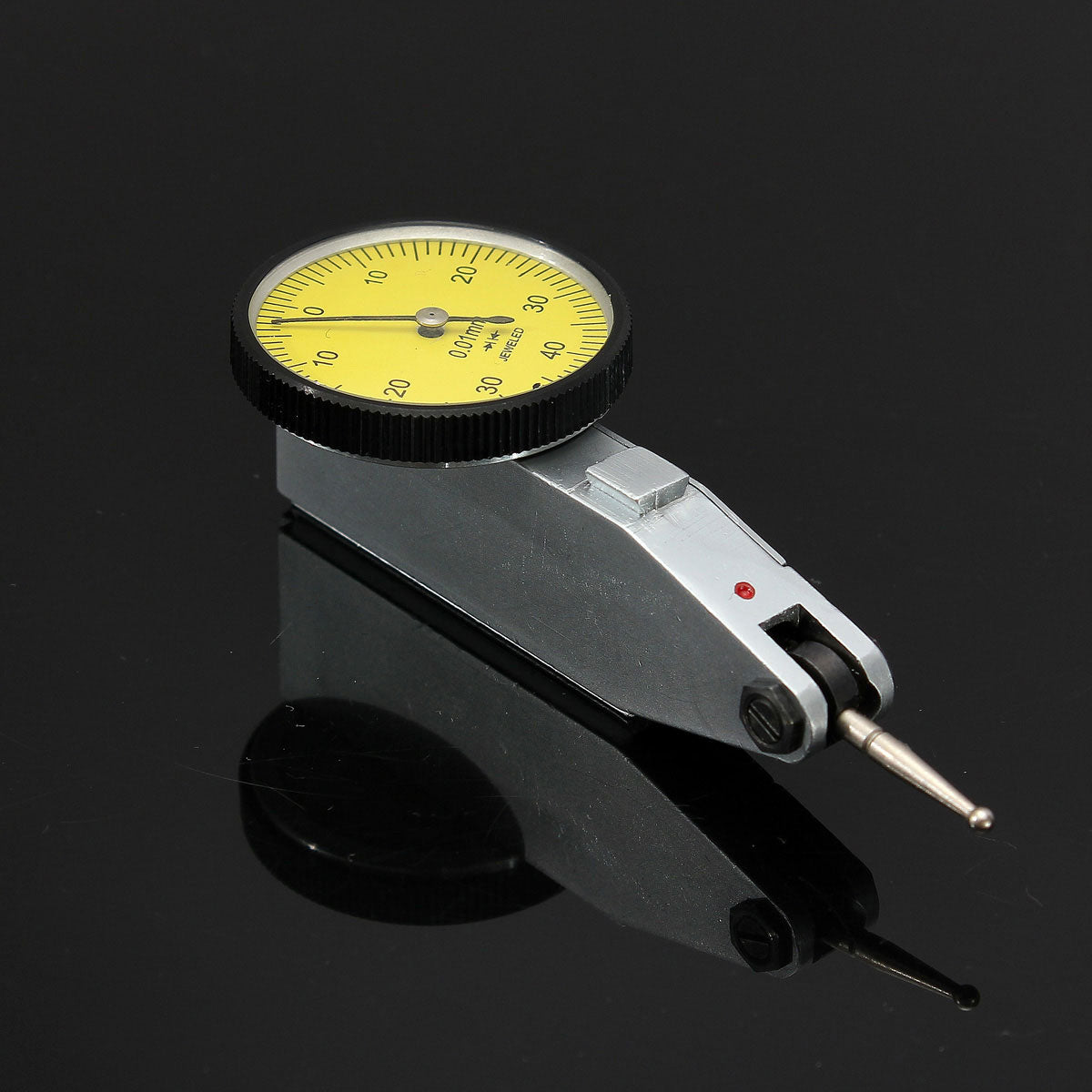

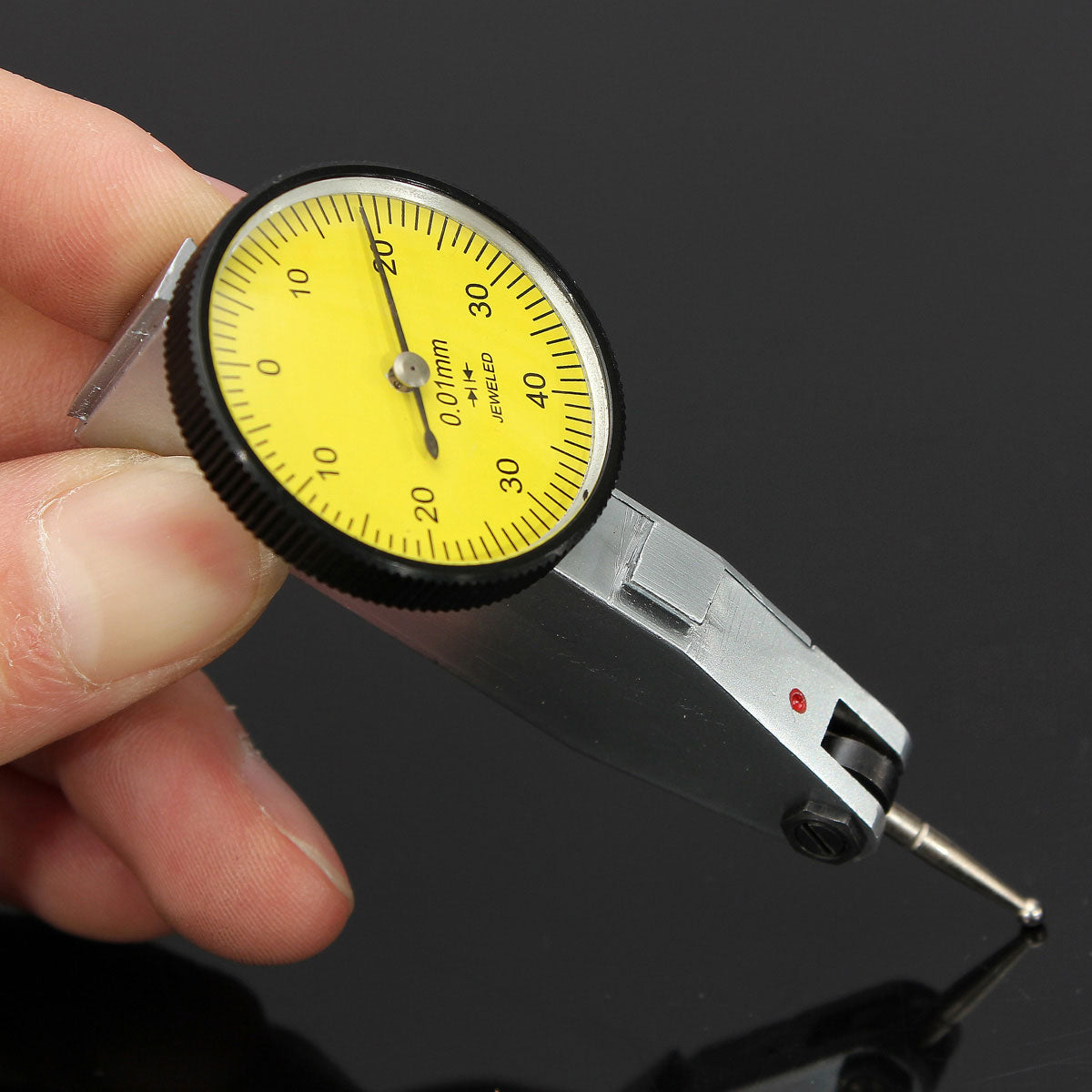

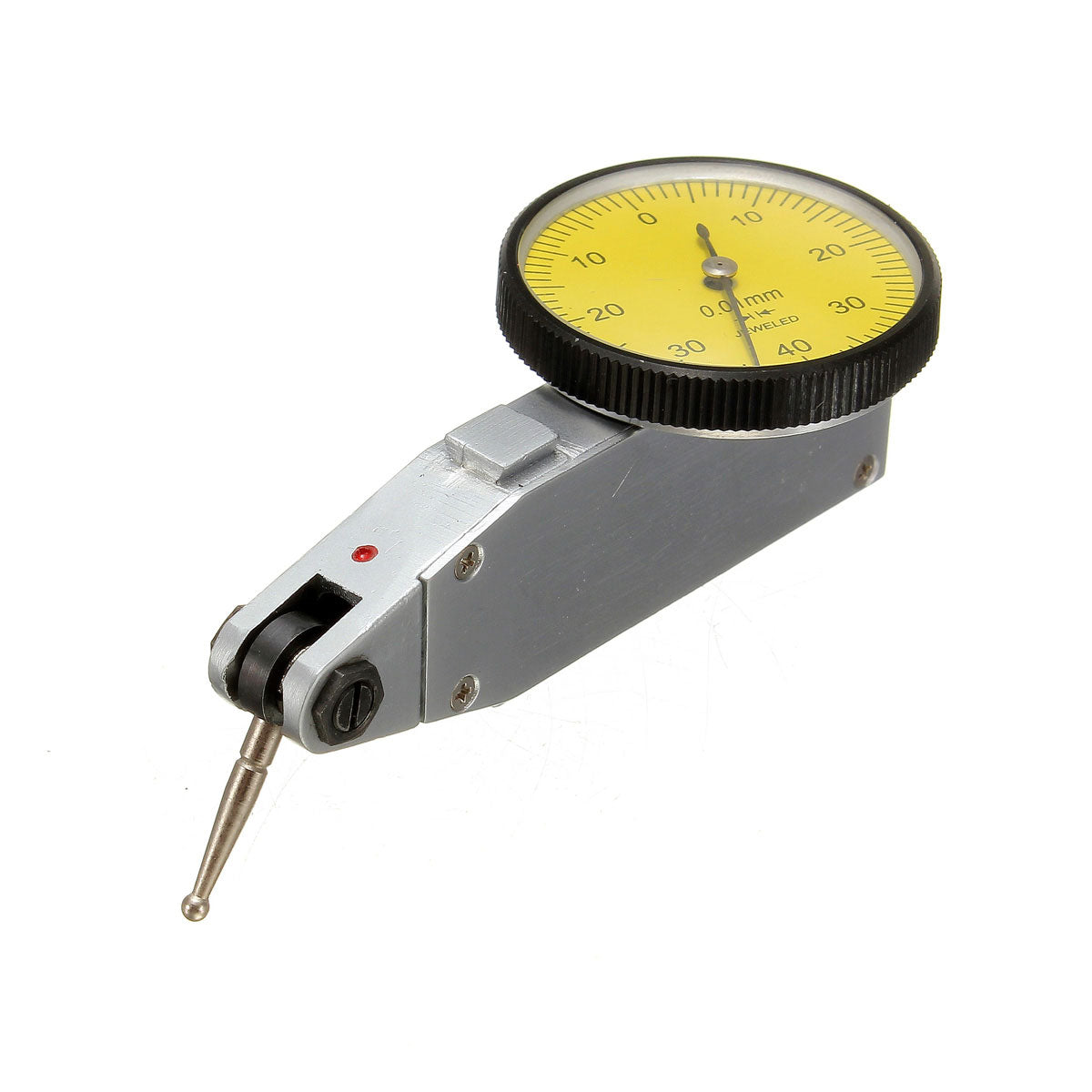

Thisdialtestindicatorisdesignedfortakingmeasurementsinmachining,layout,andinspectionwork.Thedialhasmicrofine blackgraduationsfor0~40~0balancedinchreadingsandredgraduationsfor0.001mmbalancedmetricreadings.Amovement andanauto reversingcontactpointprovidesmoothaction. Aknurledbezelrotates360degreestozerothereadingatanylocation. Threedovetailmountsonthetop, back, andfrontoftheindicatorprovidearangeofmountingoptions. Theone piecehousingandsatinchromefinishprovidesdurability.
Thisdialtestindicatorincludesone3/8'andone5/32'dovetailclampandamoldedcase. Dialreadingswiththreedigits, 0-40-0forexample, signifythattheindicatorhasabalanceddial.Dialreadingswithtwodigits,0~100forexample,indicatethedialhasacontinuousdial.Balanceddialsareusedforreadingthedifferencefromaspecificsurfacereferencepoint.Continuousdialsareusedfordirectreadingsandusuallyhavealargermeasurementrangethanbalanceddials.
Feature:
1.Fowlerinch/metricdialtestindicatorwithyellowfaceisdesignedtomeasuresurfacevariationsinnarroworrecessedareas0-0.8mmmeasuringrange,0.0005'/0.01mmgraduations,0-40-0balancedinchreadings,and0.001mmbalancedmetricreadings.

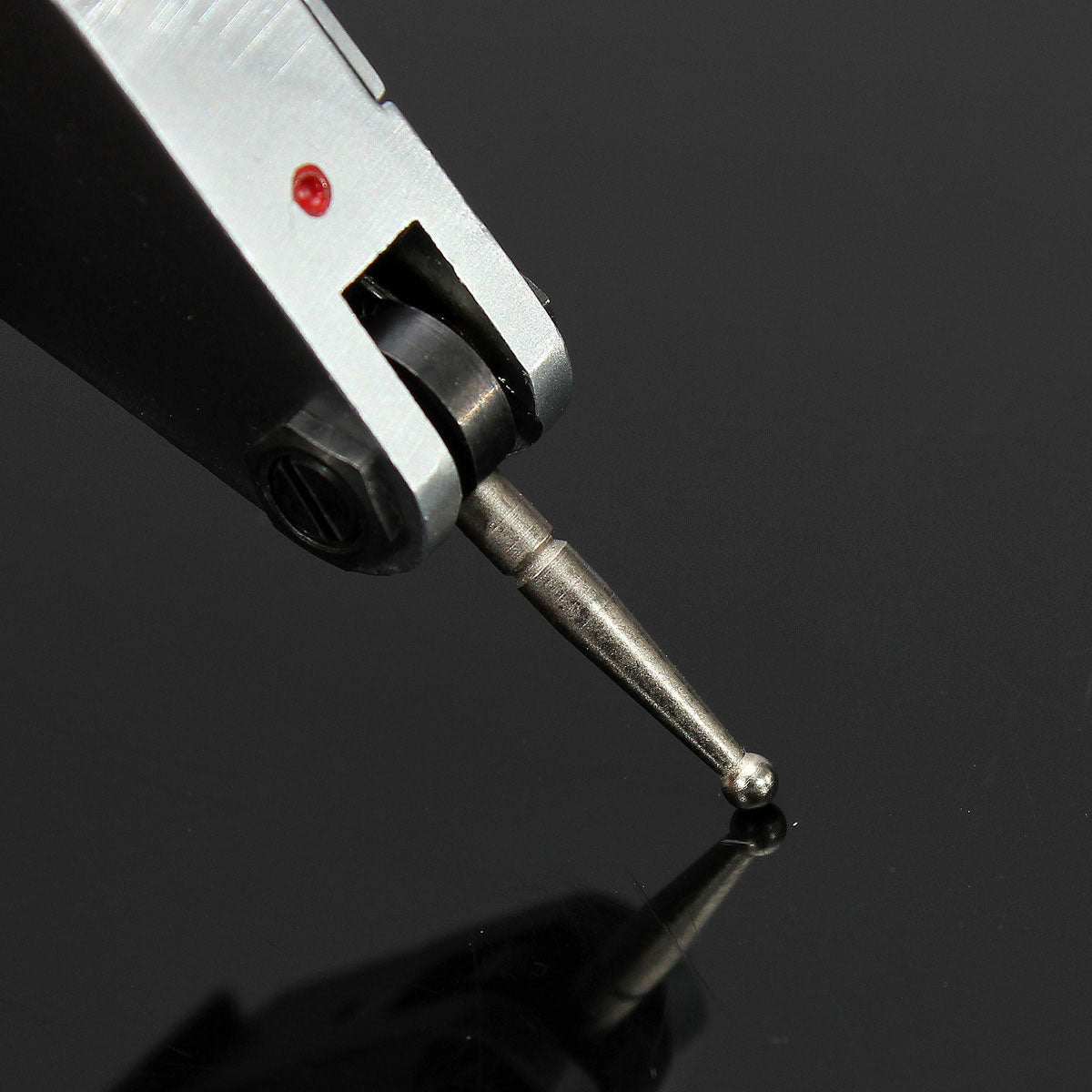

2. Auto-reversingcontactpointandadjustablebezel.

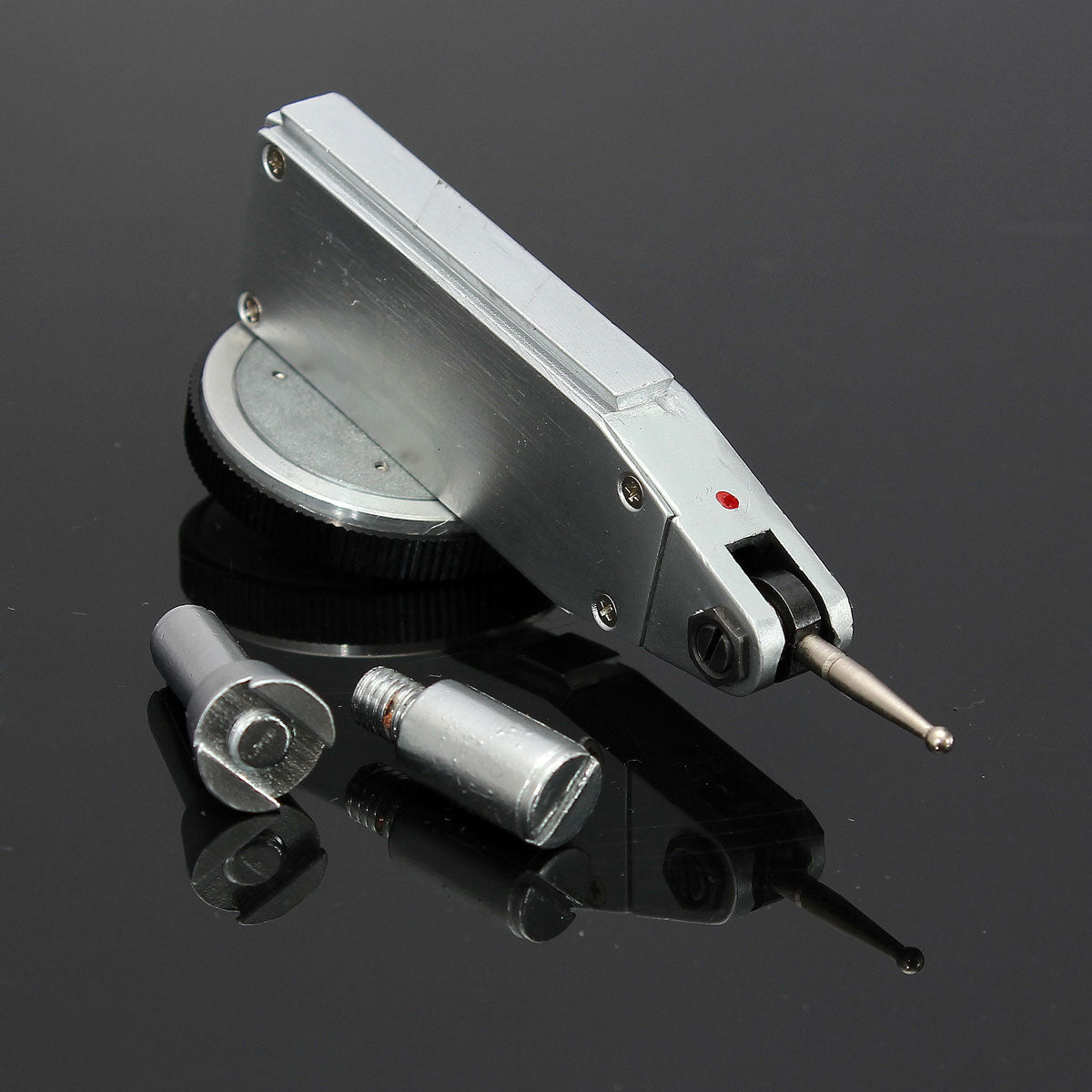

3.Threedovetailmountsformountingindicatorfromthetop,back,orfront.
4. One-piecehousingwithsatinchromefinishprovidesdurability.
Specification:
|
Face |
1-1/4'diameteryellowface |
|
Dialtypeandreading |
0-40-0balancedinchand0-.25-0balancedmetricreadings |
|
Range |
0-0.8mm |
|
Graduations |
0.0005'/0.01mm |
|
Contactpointlength |
1/2' |
|

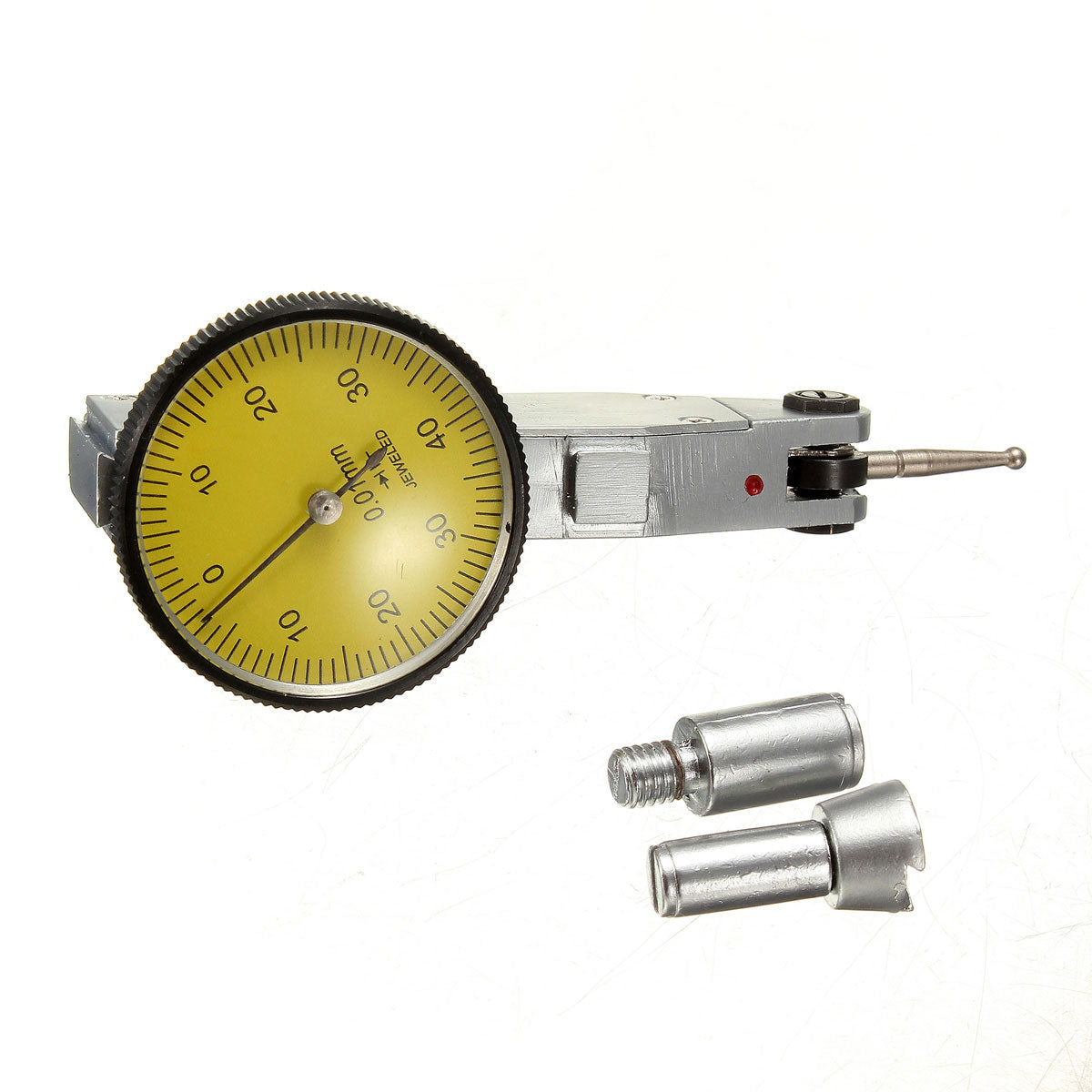

Dovetailclamps |
3/8'and5/32' |
|
Mountingtype |
Dovetail |

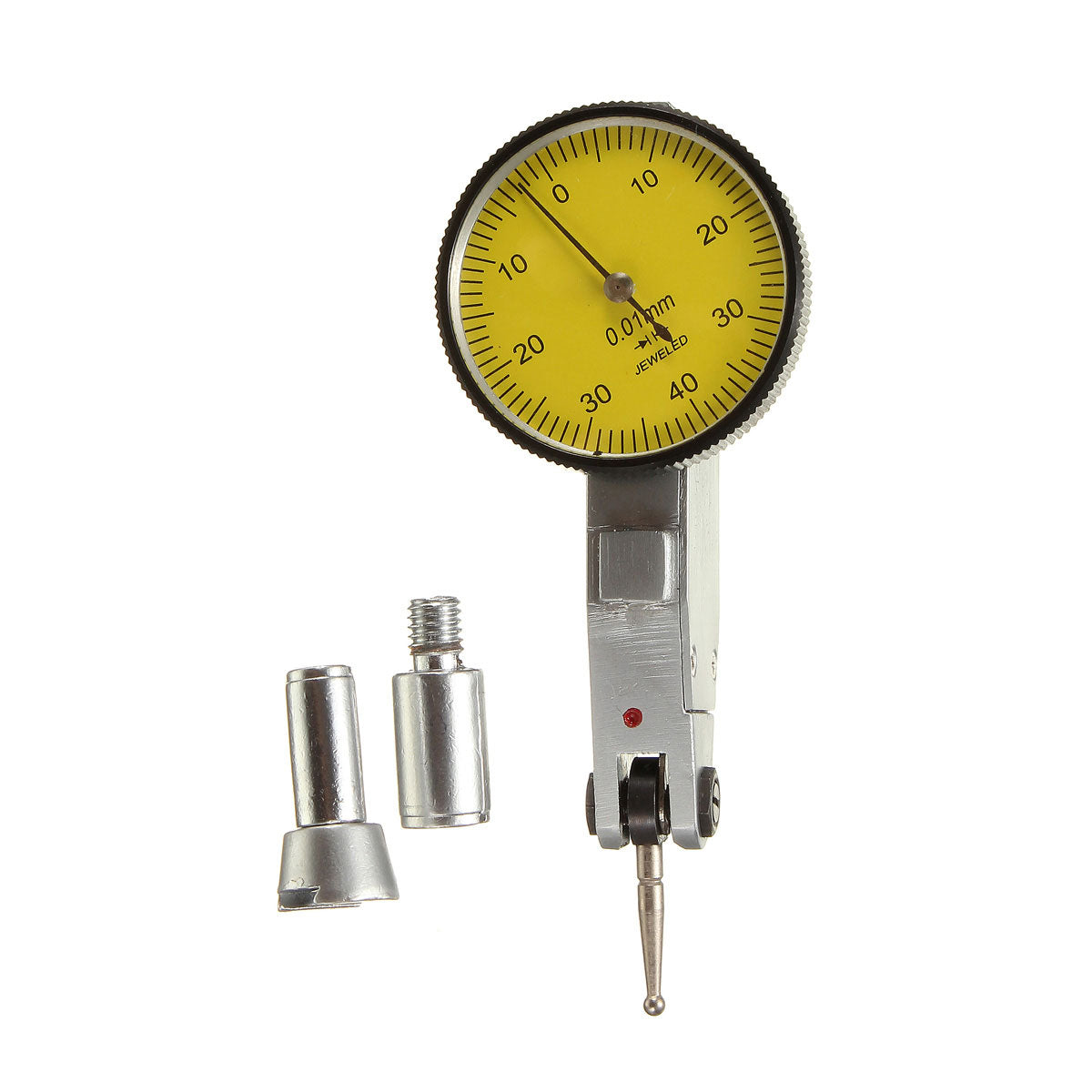

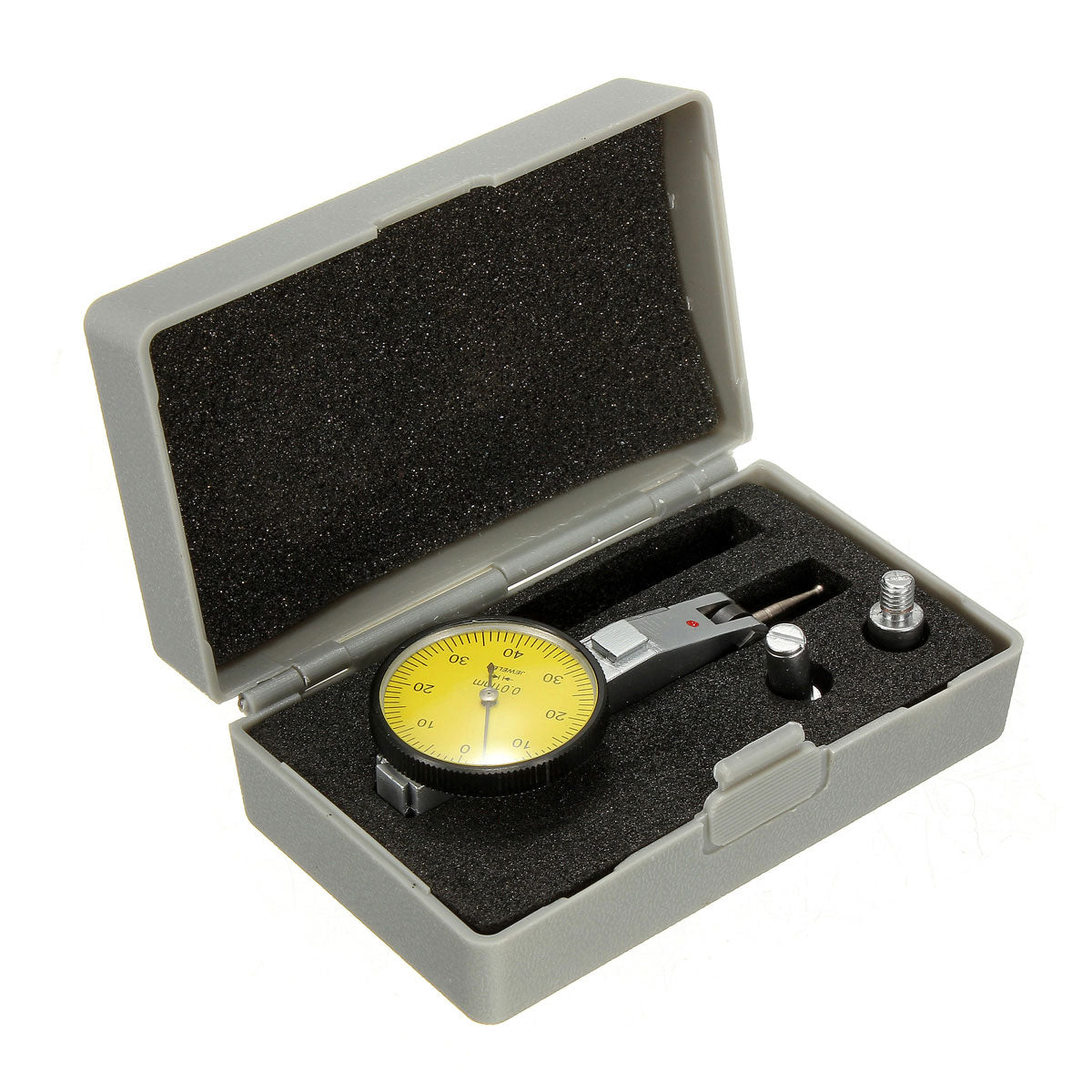

Packageincluded:
|
1 X |
Fowleryellow-facedialtestindicator |
|
1 X |
3/8'dovetailclamp |
|
1 X |
5/32'dovetailclamp |
|
1 X |
Moldedcase |
