Specification:
Model: K06
Type: Ejector Rod
Locking Type: Fail Secure
Rated Voltage: DC 12V
Rated Current: 2A
Locking Force Hook: 150kg
Maximum Continuous Lighting Time: 5s
Working Environment: - 40 to 60℃
Solenoid Life: 0.5 million times at rated working conditions
Cable Length: 170mm
Suitable for: 0.5~4kg weight cabinet door
Size: Approx. 73×66×13mm
Features:

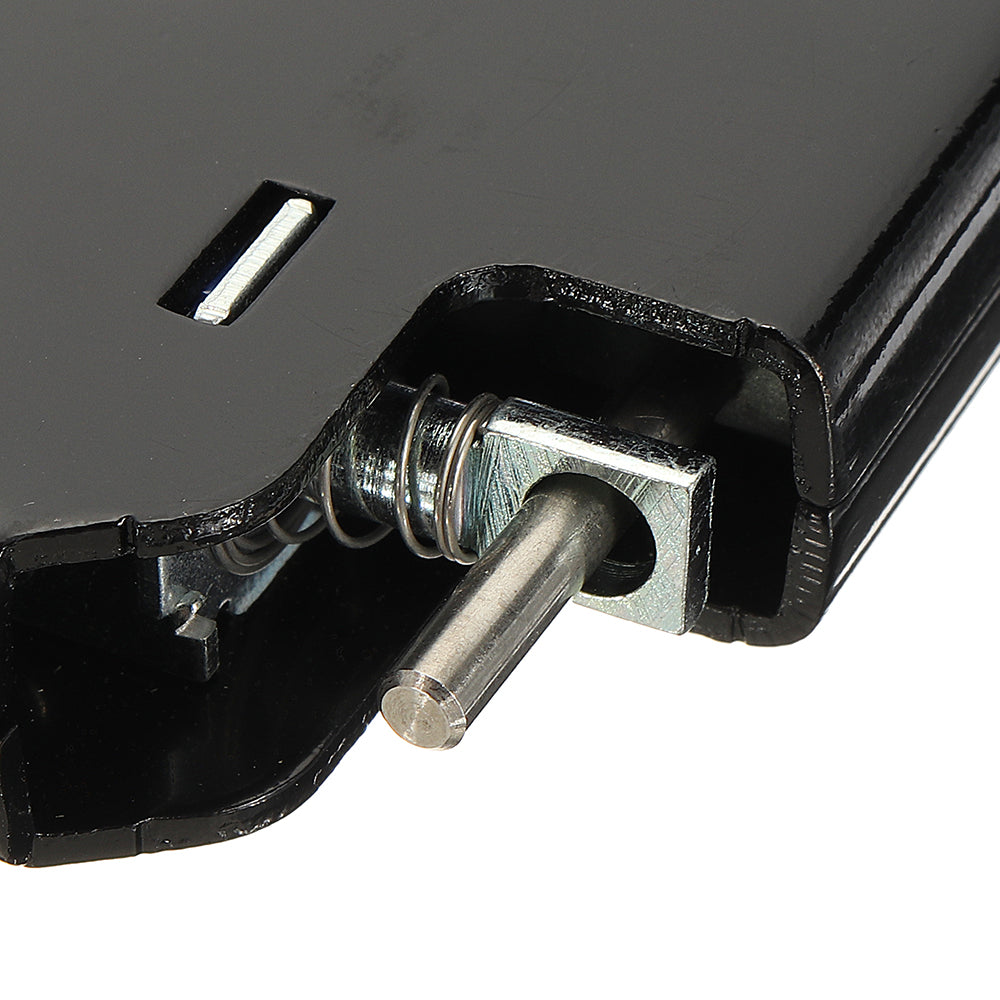

- Ejected Rod Design:The spring loaded ejected rod will be pressed down when the cabinet door is closed. It will increase the pop-up force when opening door.
- Fail Secure Design: It's locked when power is removed. Instant power is applied to unlock the door.

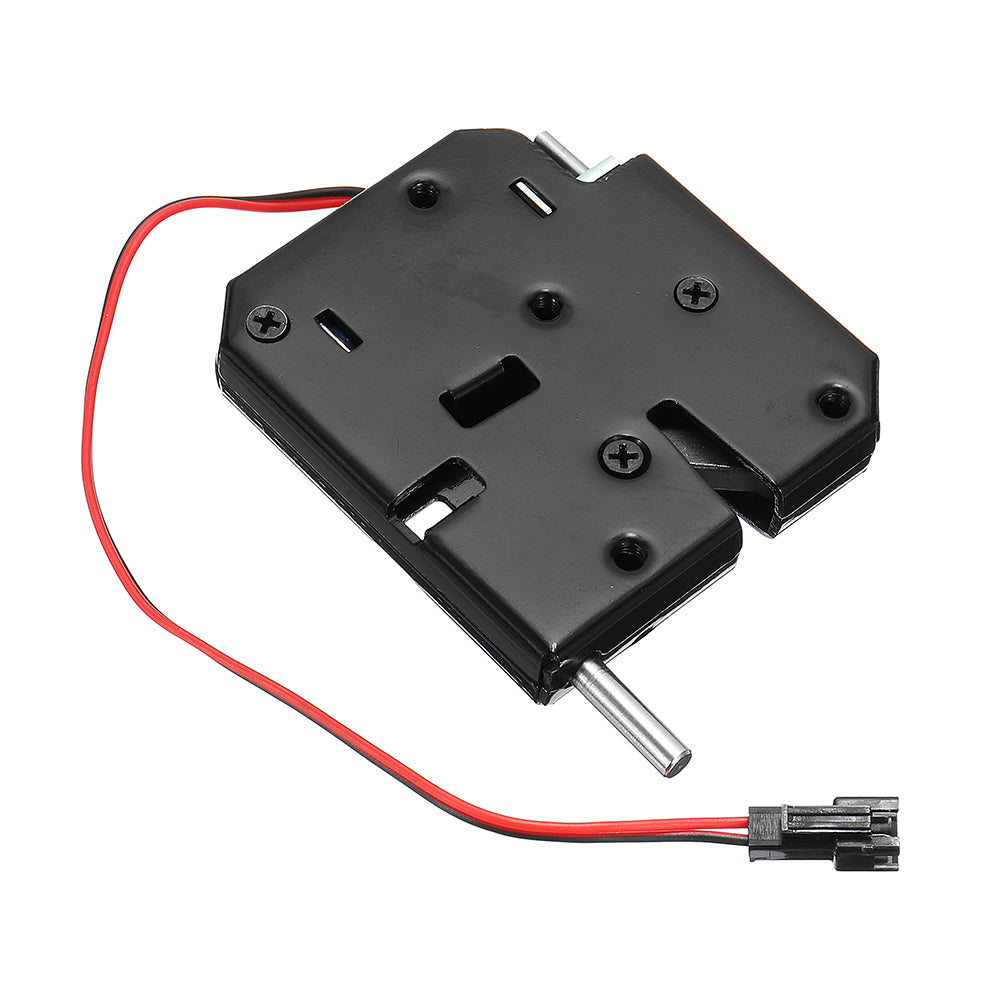

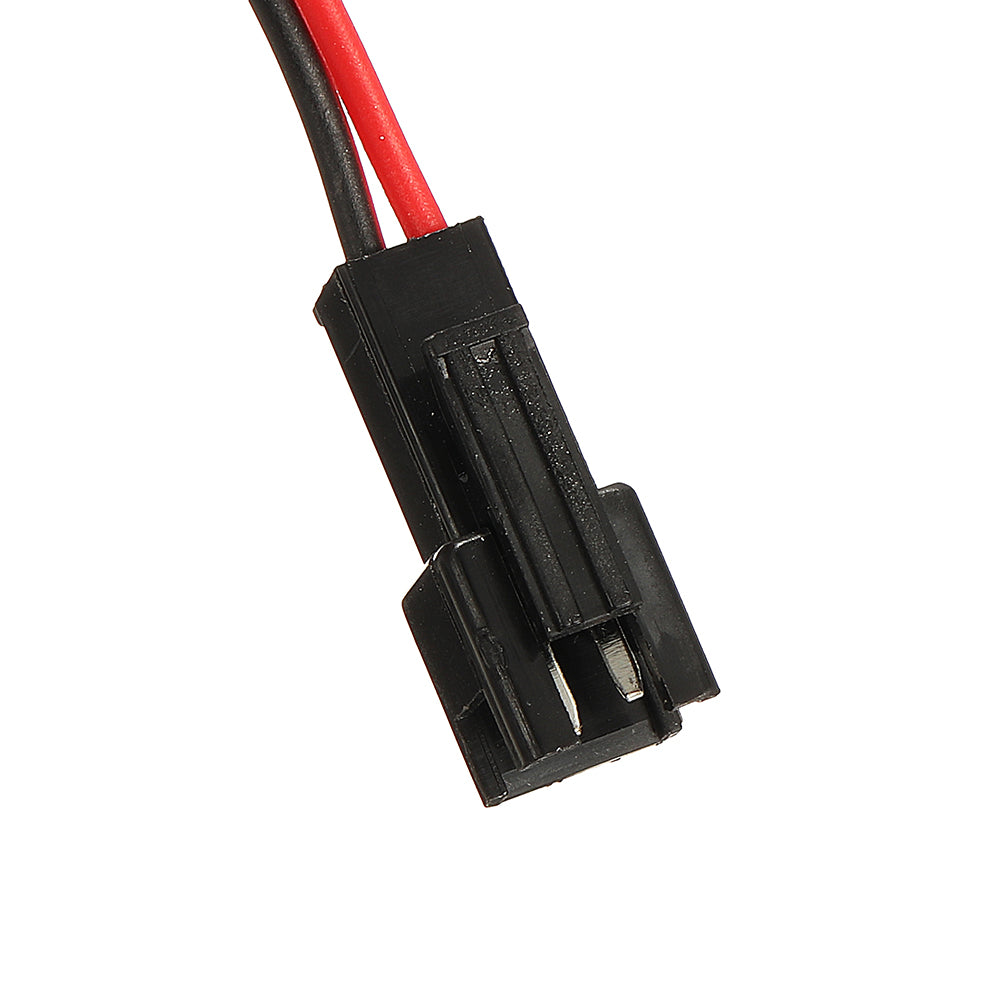

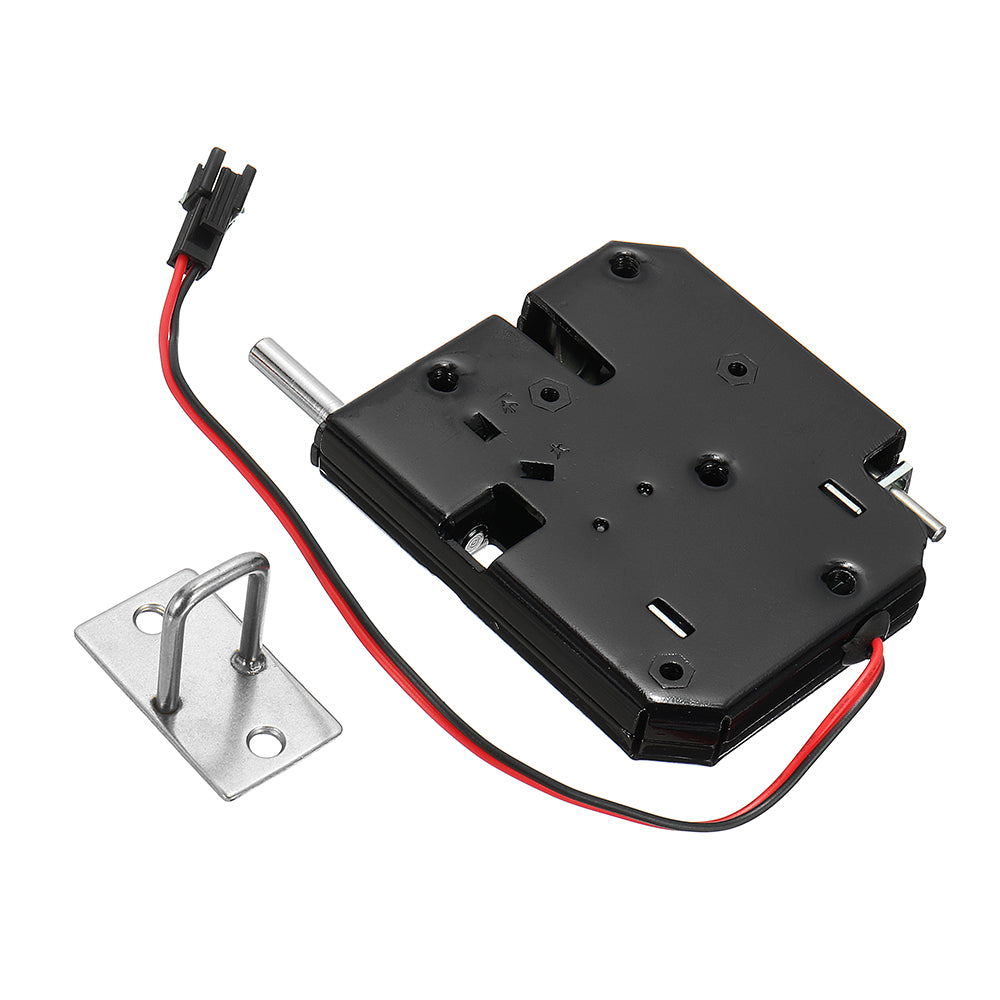

- The connector type of K06 is a SM 2 Pins Plug. K06 has one female plug for power supply.
- Emergency Manual Unlock: The hidden handle can be used for emergency unlocking. Pressing it is able to unlock the door without power.
- It is steady, durable and energy-saving and had a long lifespan.
- In the anti-theft and shockproof design, the lock is better than other kinds of locks.
- Easy Installation: Just use three screws to fix this unlock, low install cost. Regular triangle mounting enables its stability and security.
- Self Pop-Up Design: When the power is applied, the lock will push the latch out, it means the cabinet door will pop up automatically. Suitable for 0.5~4kg weight cabinet door. By the way, you need to push the latch in to relock the door.
- Used for locking vending machine, storage shelf, file cabinet, display cabinet, ticket delivery, refrigerated cabinet, mail box, newspaper box, local grocery, book cabinet, drawer, etc.
Package Included:

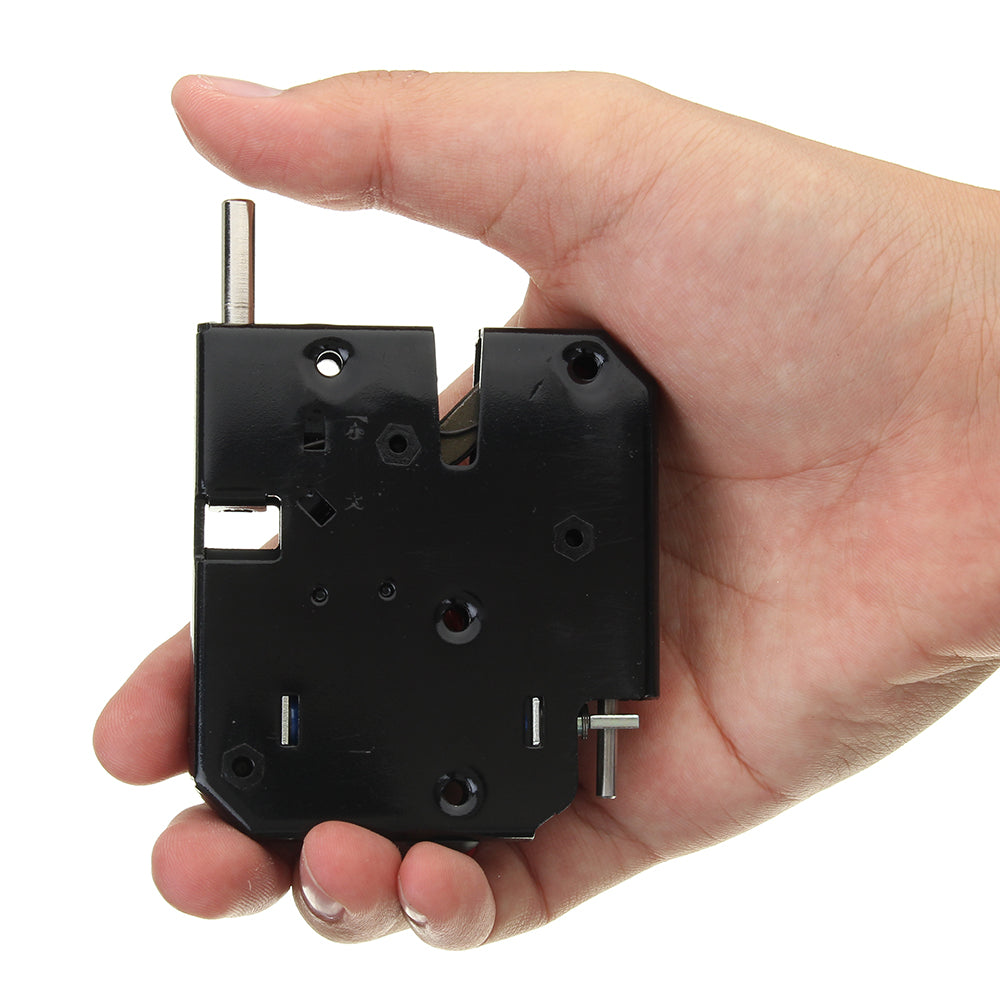

1 × Electric Magnetic Cabinet Lock
