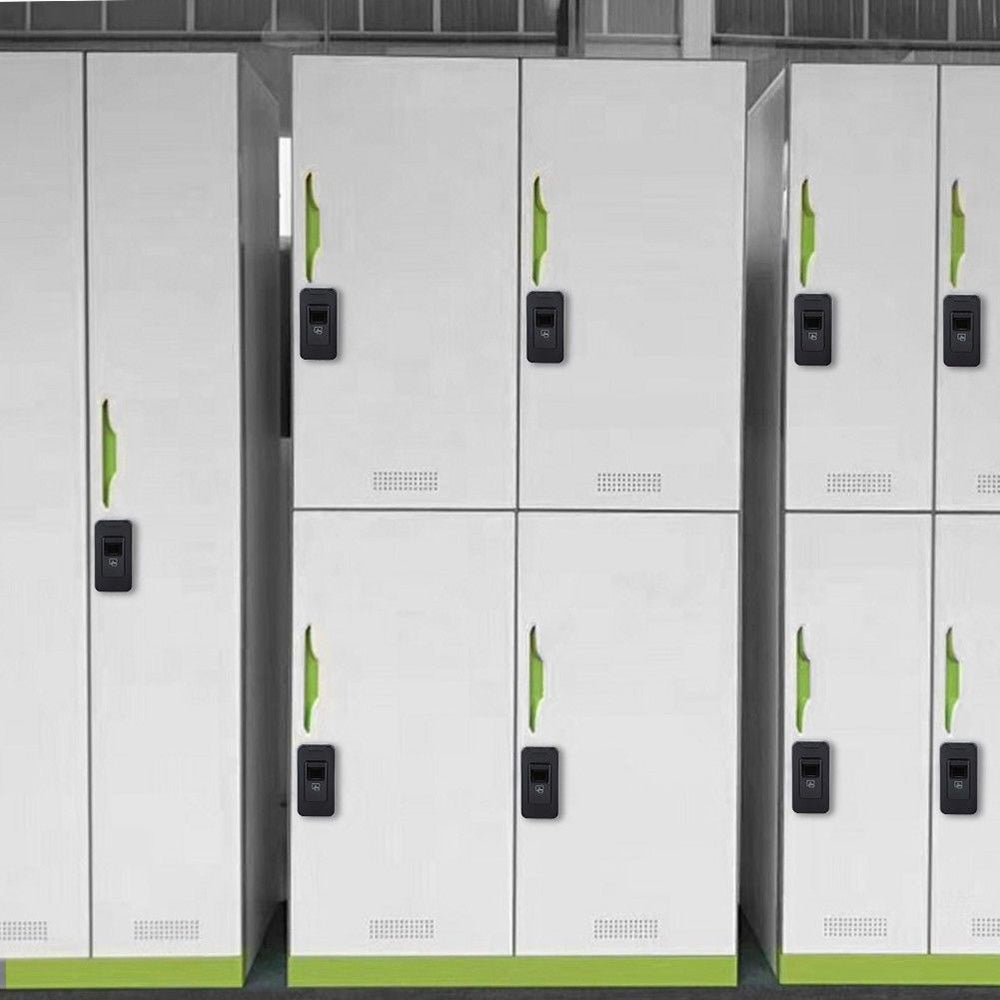

Description:This sauna drawer lock is multi-user fingerprint management, 10 management users, 100 ordinary users. Double unlock mode, can be set to single fingerprint unlock, can also be set to double fingerprint unlock.
Specification:Item type: Drawer Lock
Panel material: Acrylic
Frame material: Zinc alloy
Color: Black
Management Users Fingerprint Capacity: 10pcs
Ordinary Users Fingerprint Capacity: 100pcs
Battery Model: 4pcs AA Batteries (Not Included)Static Working Current: 30uA
Opening Current: 130mA
Working Temperature: -20℃-55 ℃
Working Humidity: 10%RH-85%RH(No Frost)
Storage Condition: -40℃-55℃
Size:

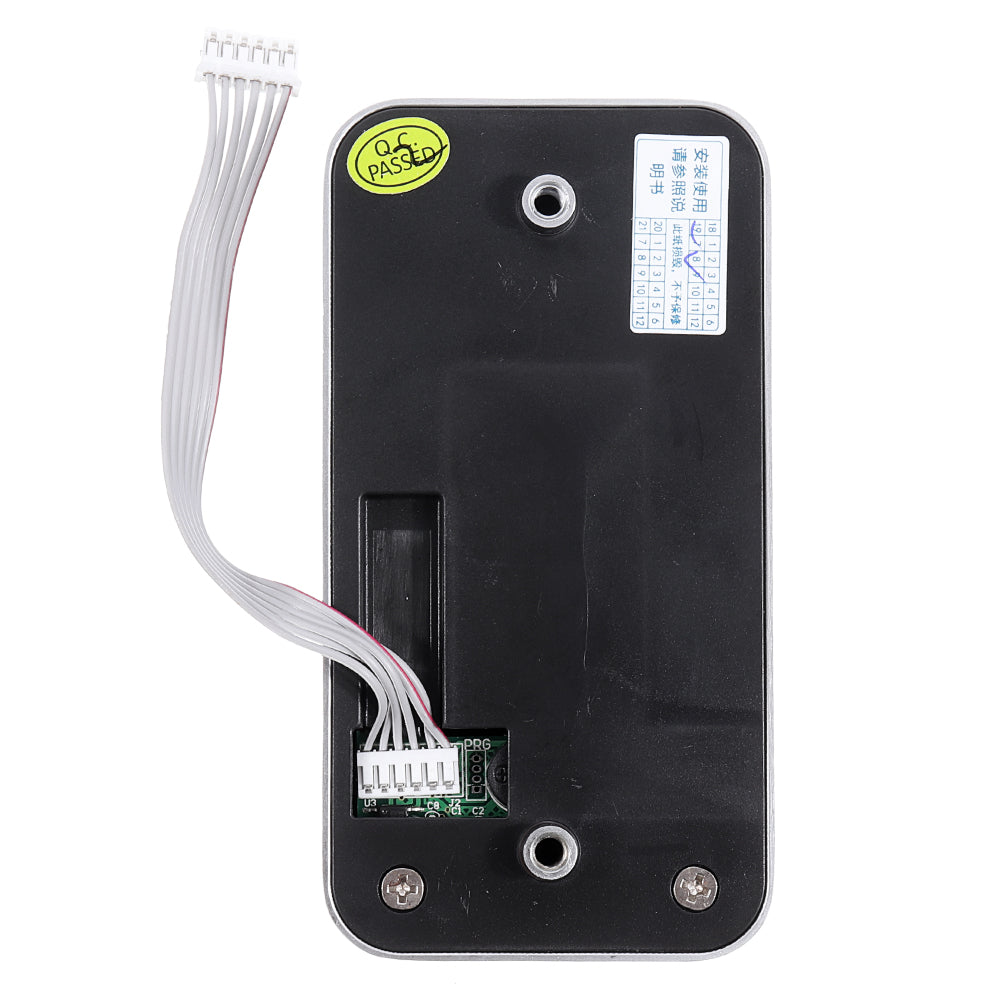

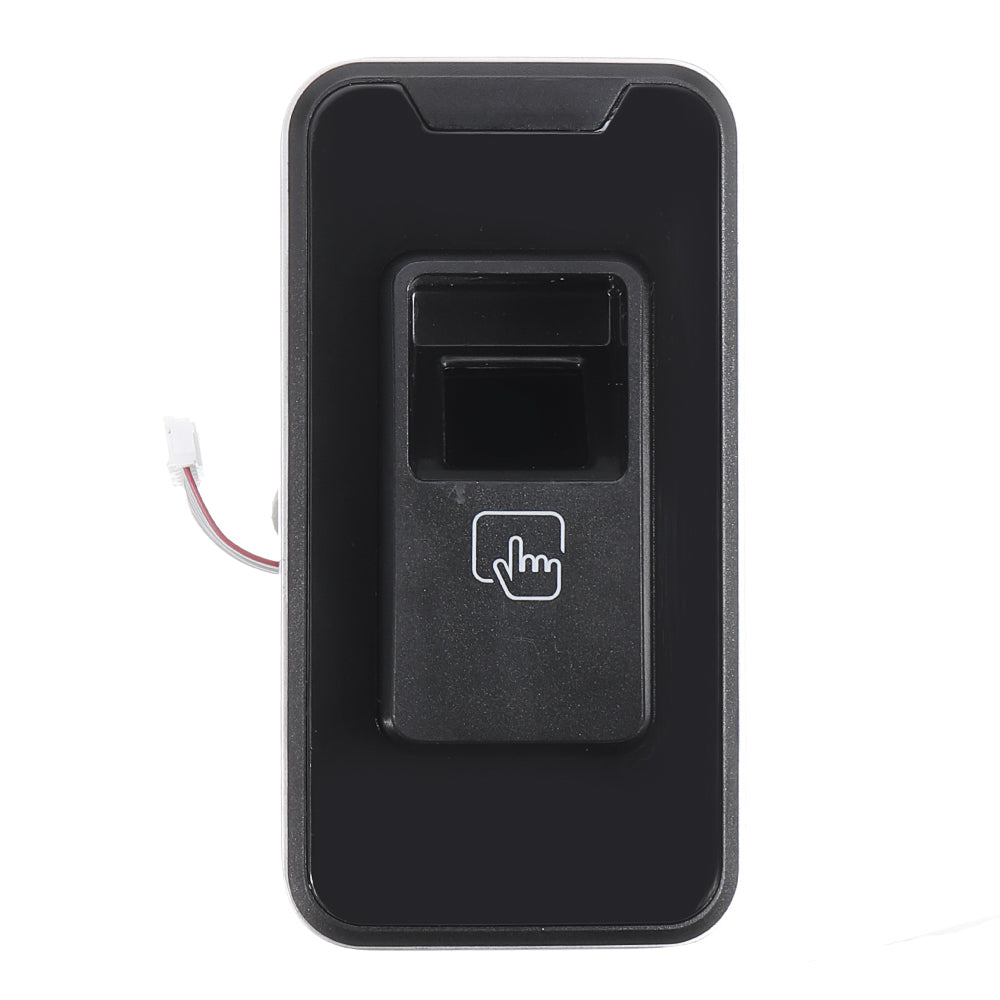

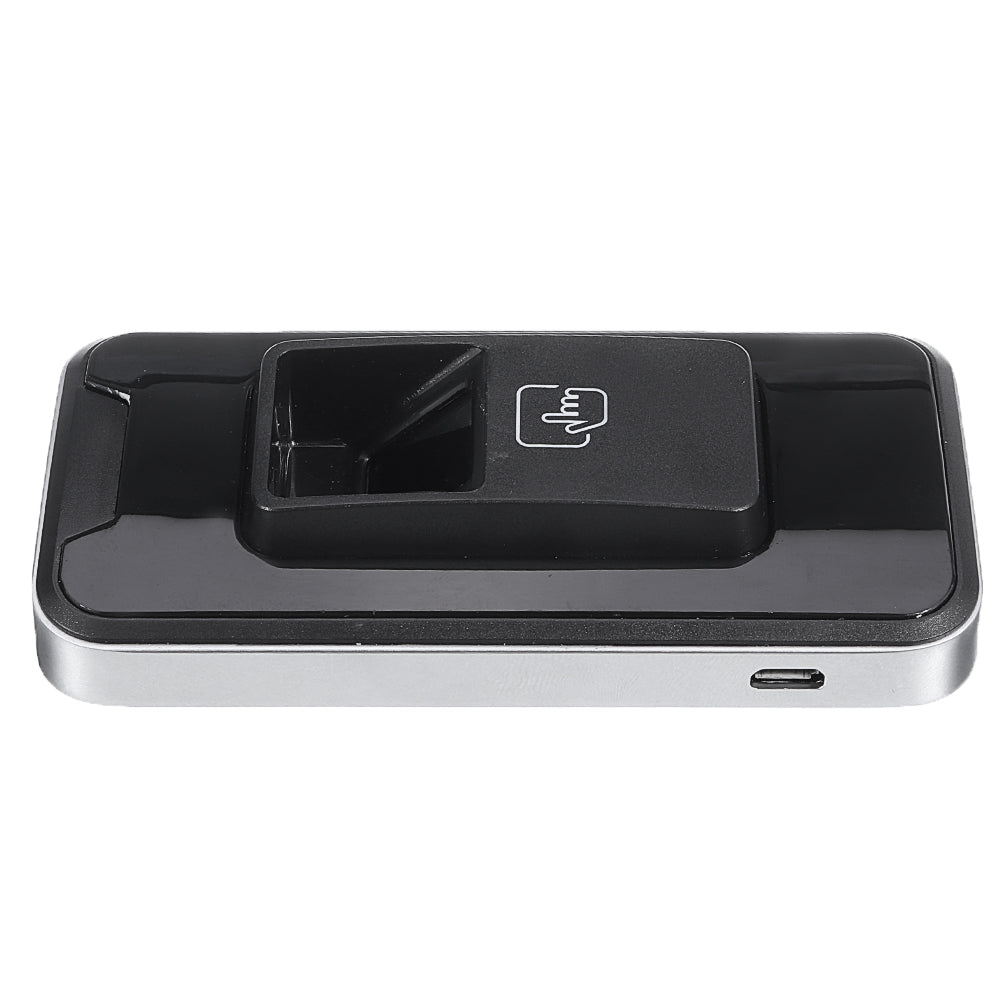

Panel Size: 108*55*11mm(Approx.)

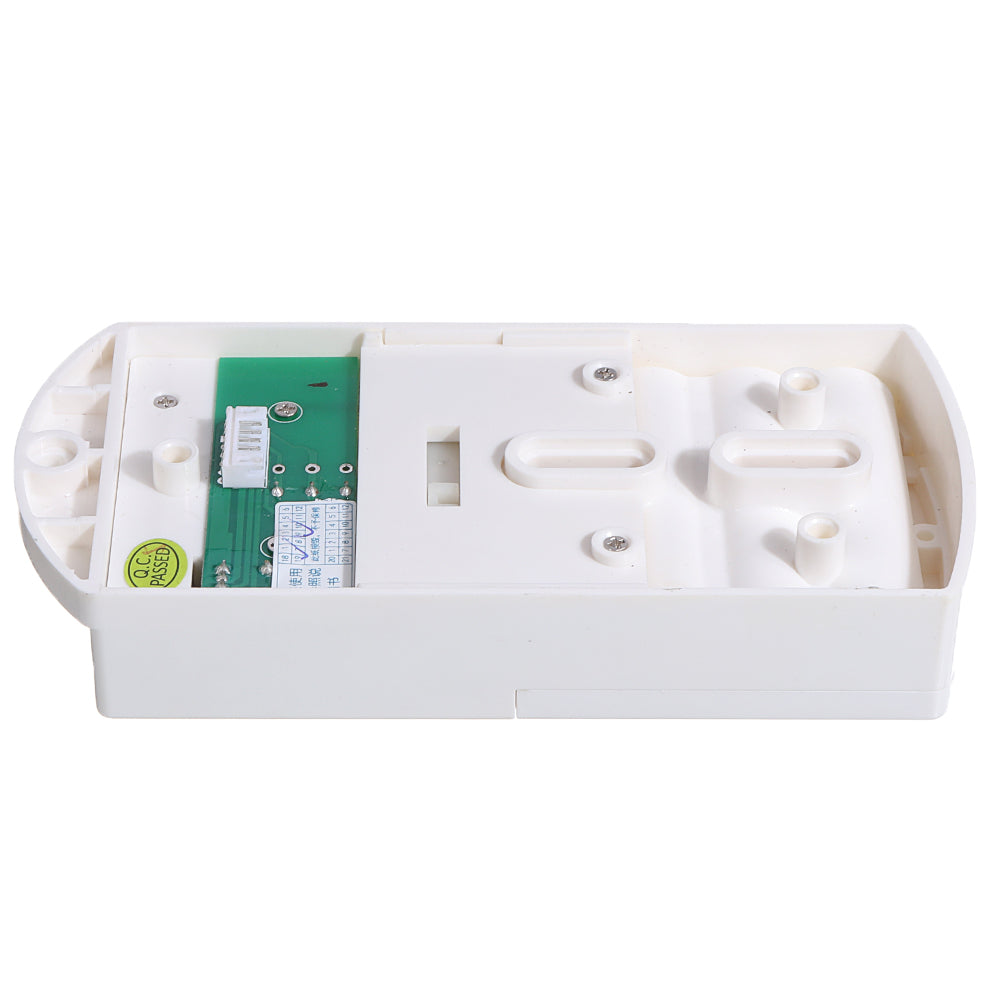

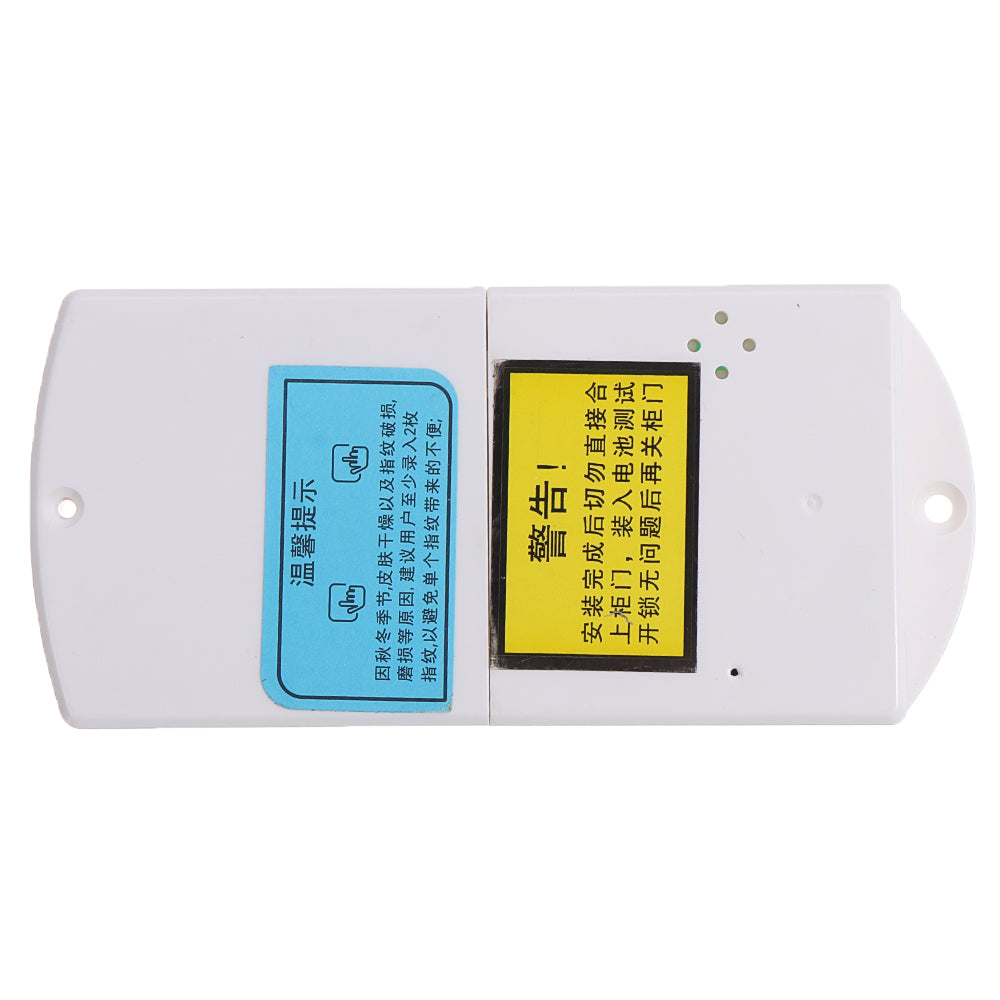

Lock Body Size: 140*63*24mm(Approx.)
Features:1. Zincalloy material, strong and durable to use.
2. Easy installation, safety in use and exquisite appearance.
3. Intelligent learning fingerprint unlocking, high sensitivity.
4. Multi-user fingerprint management, 10 management users, 100 ordinary users.
5. Double unlock mode, can be set to single fingerprint unlock, can also be set to double fingerprint unlock.
The steps of administrator’s fingerprint record:1.Insert the special needles into the hole of setting up key, it is recording administrator’s fingerprint mode when green light flashes.
2.Start recording with the same finger. The administrator’s fingerprint was enteredsuccessfully when long sound rings.
How to enter ordinary user’s fingerprint:The reminding fingerprints are the user’s fingerprint, which are recorded by authorized for administrator.
1. Press the finger of the administrator on the lock about one second, long sound rings and green light is constantly on.
2. Press the finger of the administrator on the lock about one second once again, another long sound rings, and then the green light flashes slowly. It enters recording ordinary users’fingerprint mode.
3. And then the users press the lock about one second, long sound ringing indicates successful recording of users’fingerprint.
The steps of deleting fingerprint:1. Press the finger of the administrator on the lock about one second, long sound rings and green light is constantly on.
2. Press the finger of the administrator on the lock about one second once again, another long sound rings, and then the green light flashes slowly. It enters recording ordinary users’fingerprint mode.
3. Press the finger of the administrator on the lock about one second for the third time, and then the green light flashes quickly. It enters deleting fingerprint mode.
4. Press the finger which needs to be deleted on the lock, long sounds ringing shows successful deleting of fingerprint.

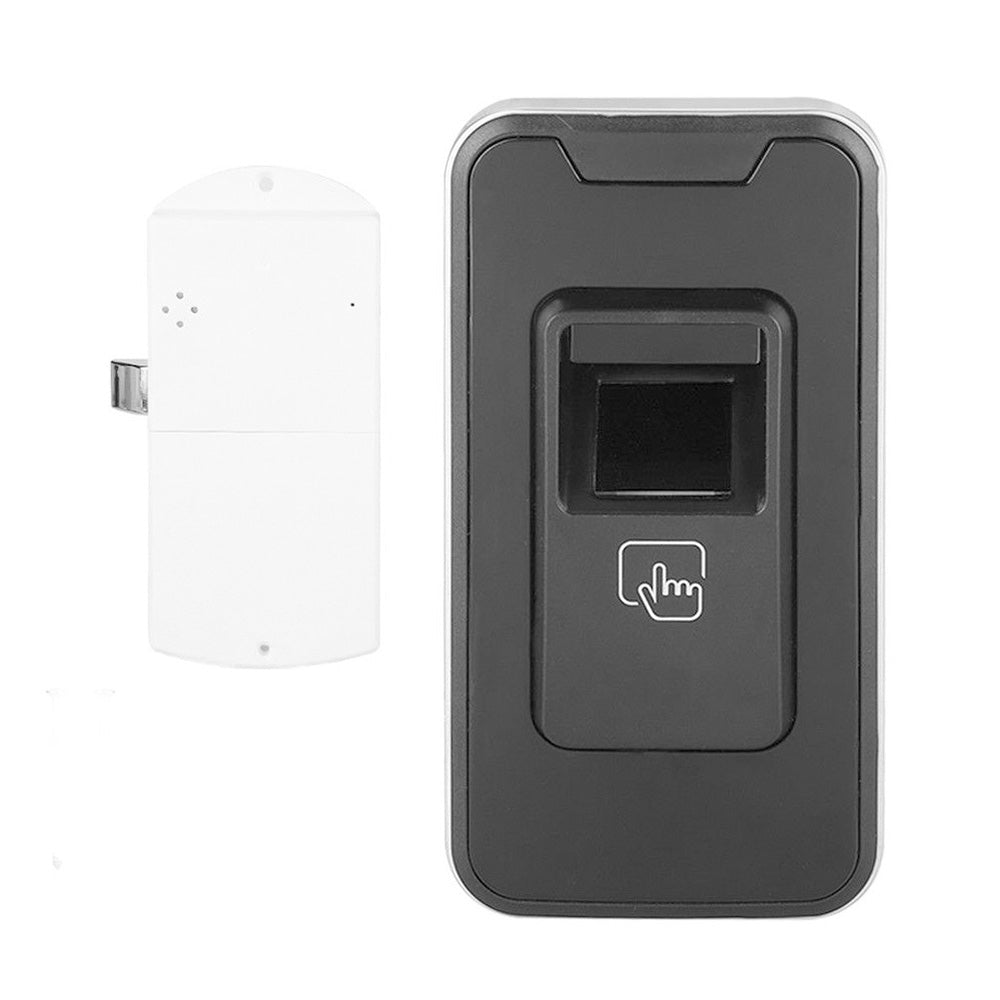

Package Included:1 x Panel (Batteries Not Included)
1 x Lock Body
1 x Installation Kit
1 x User Manual
More Details:
