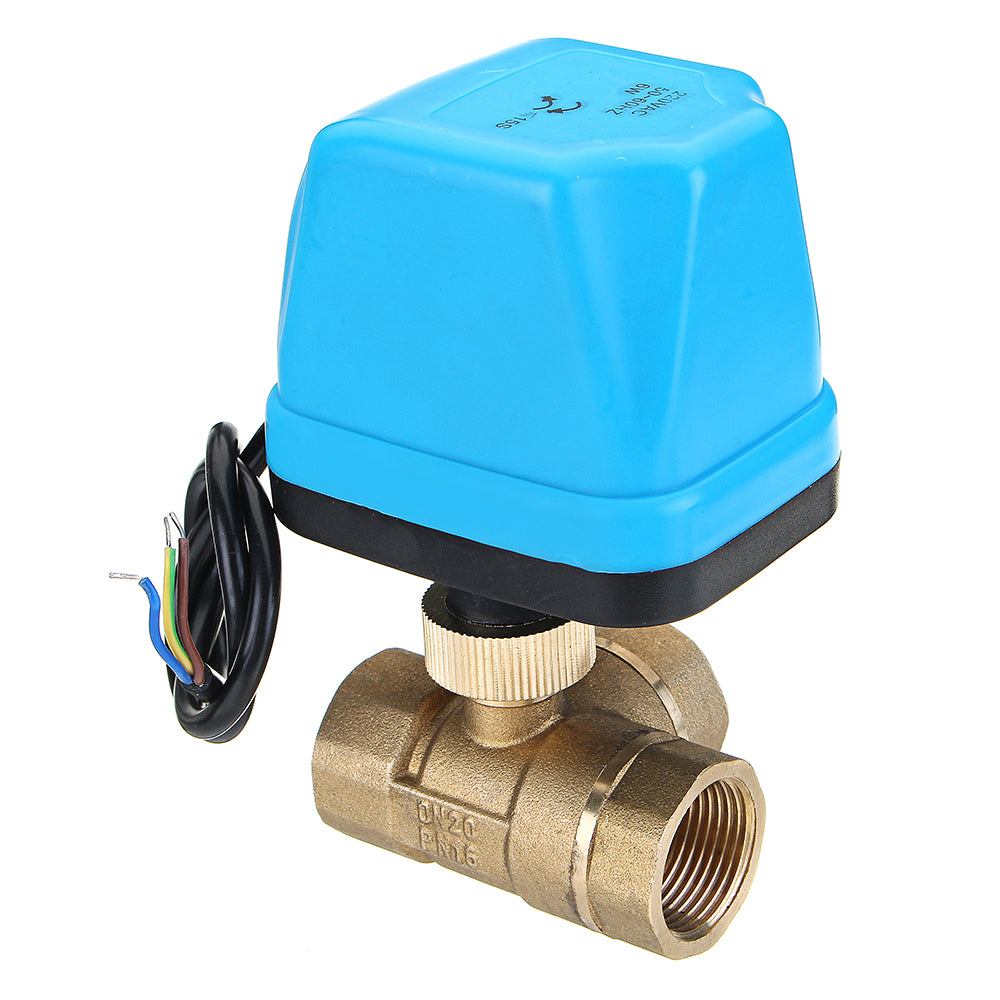

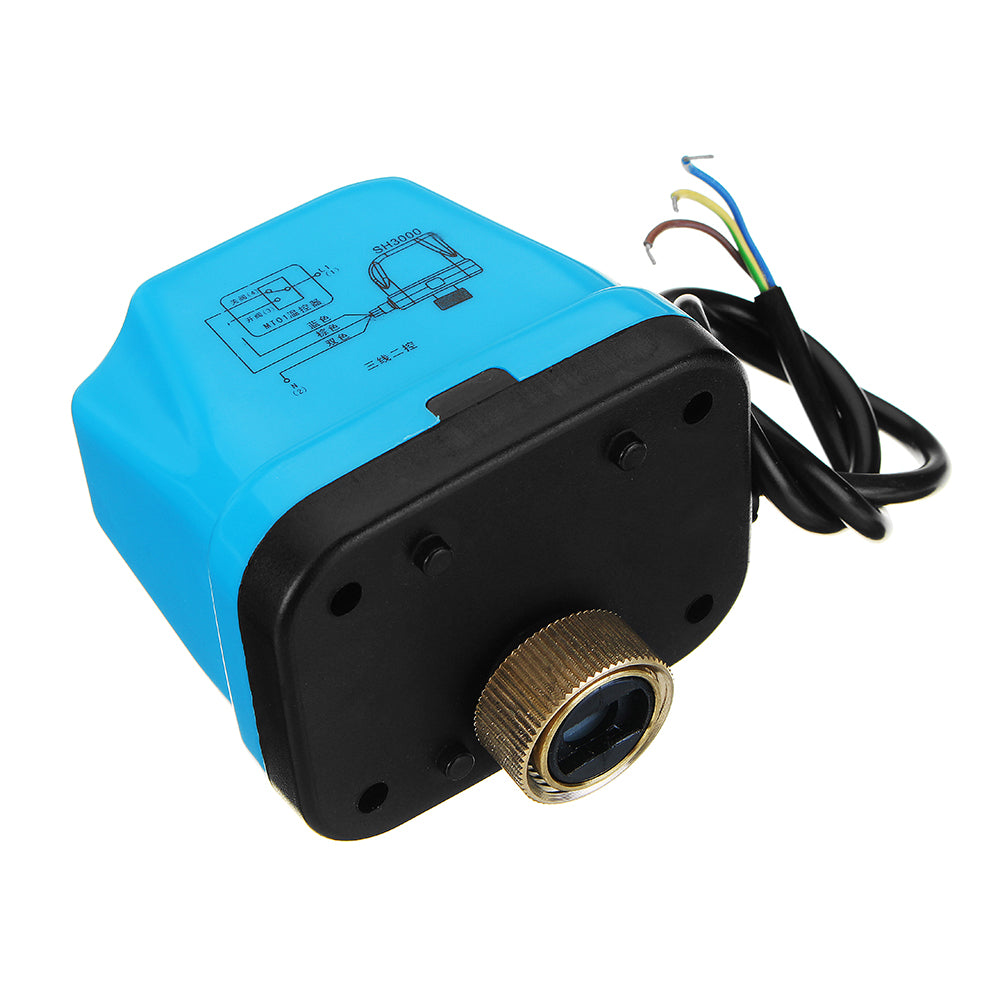

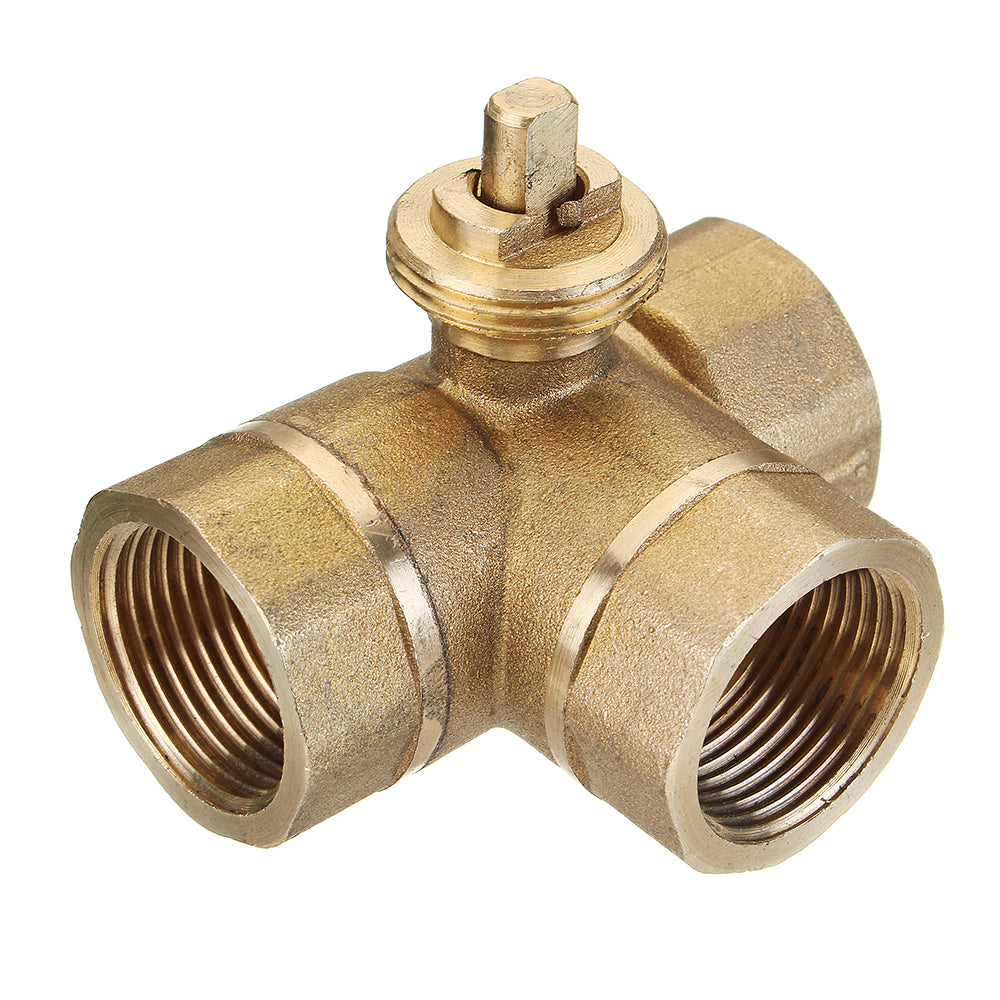

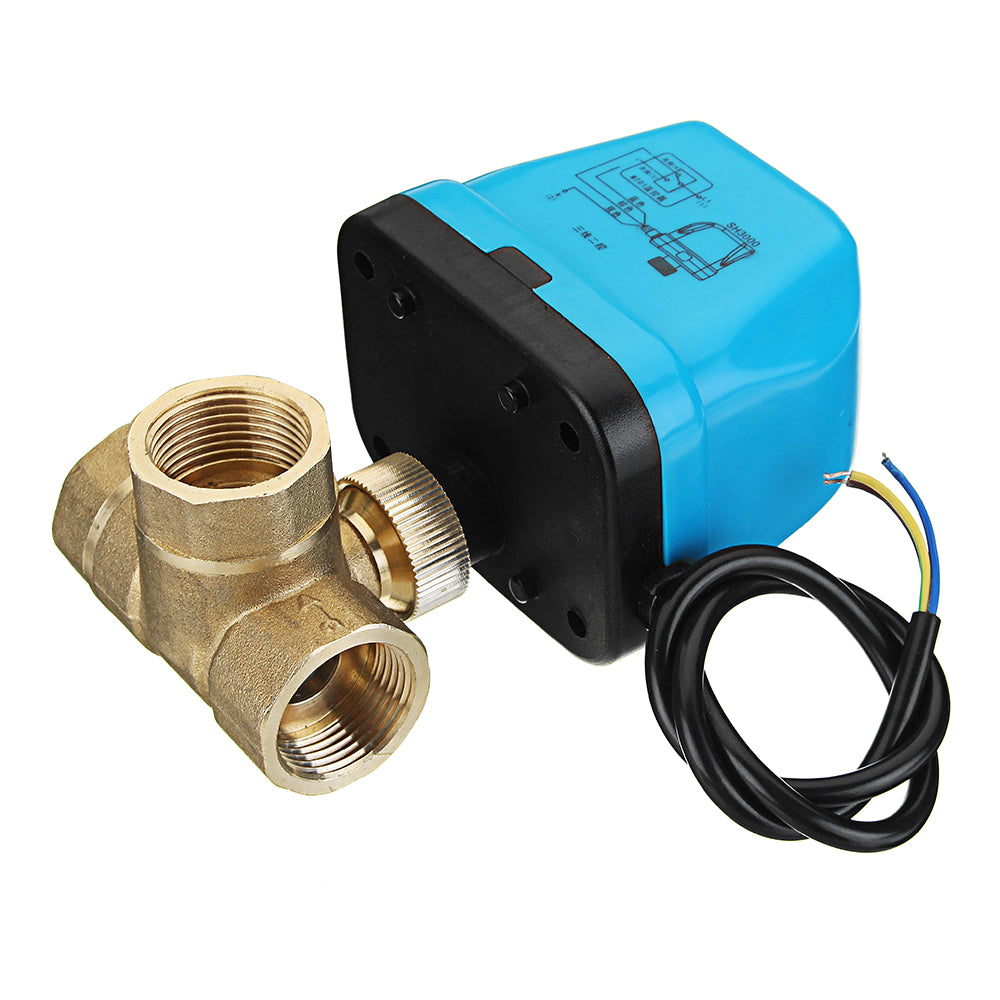

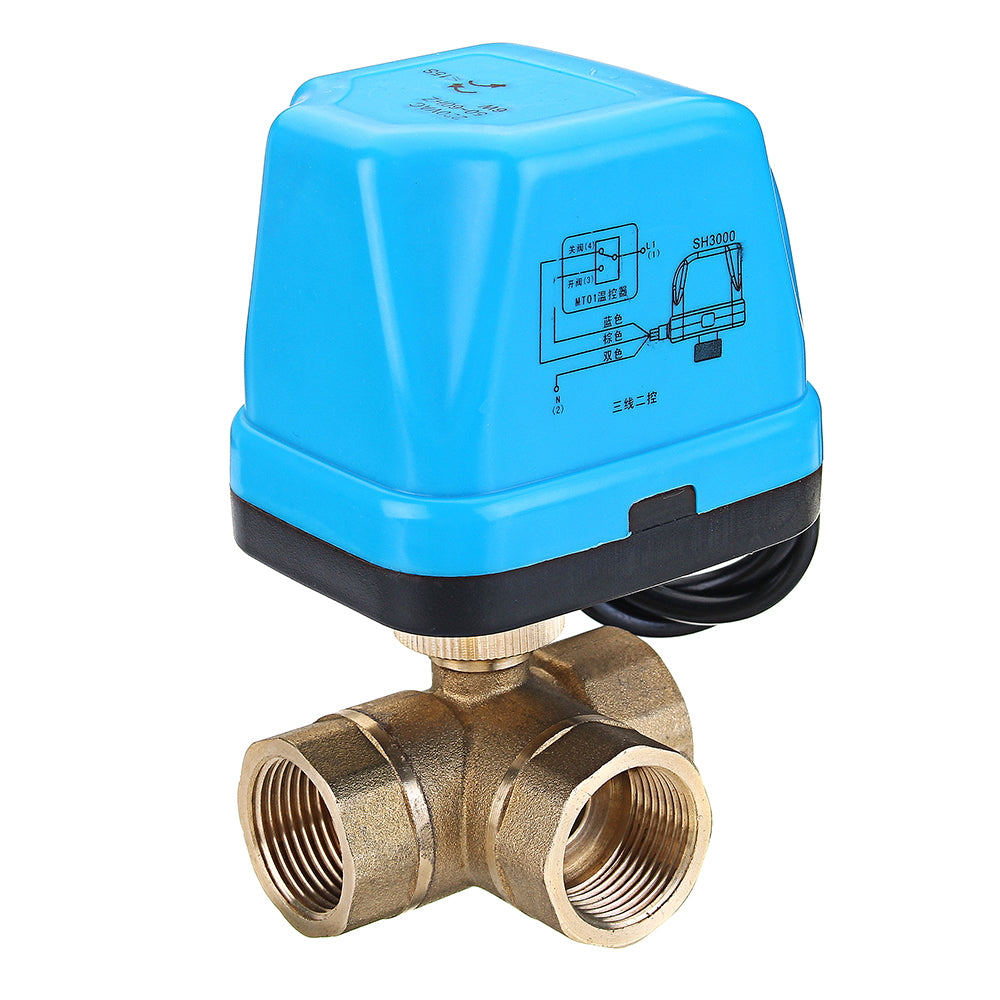

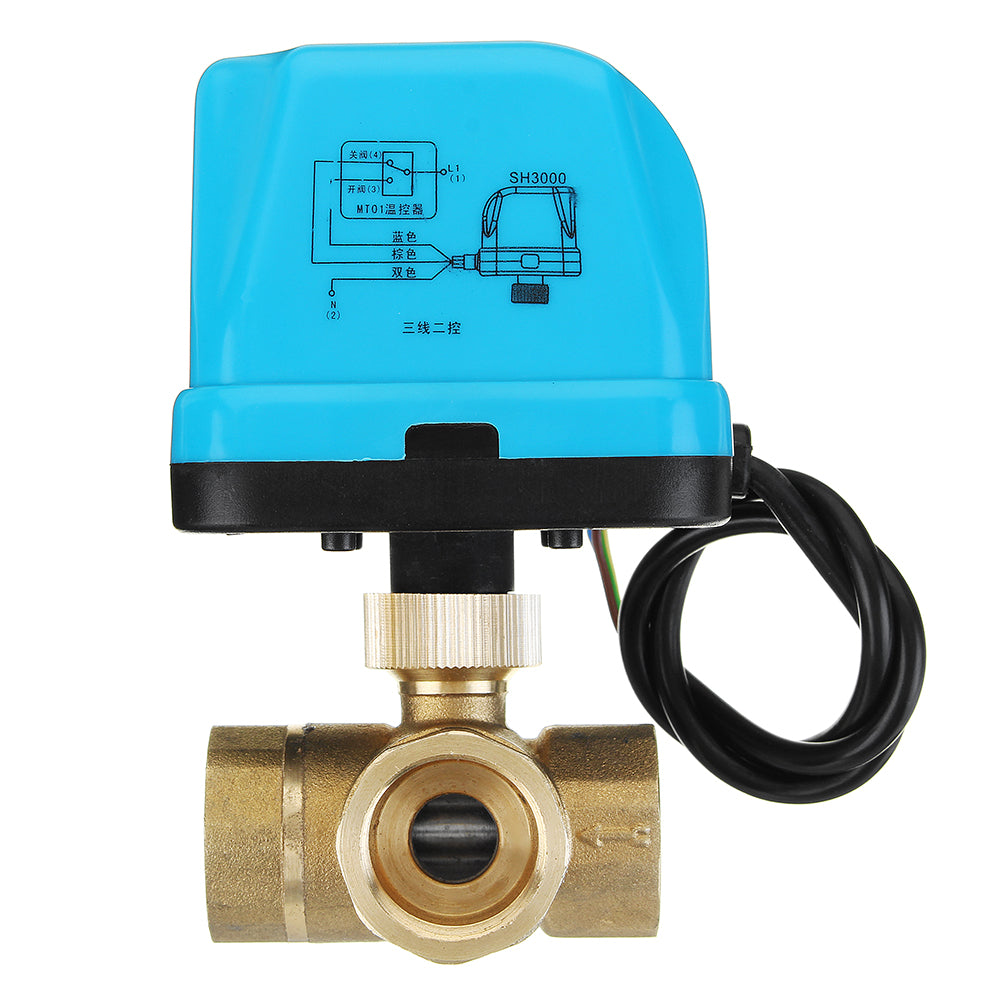

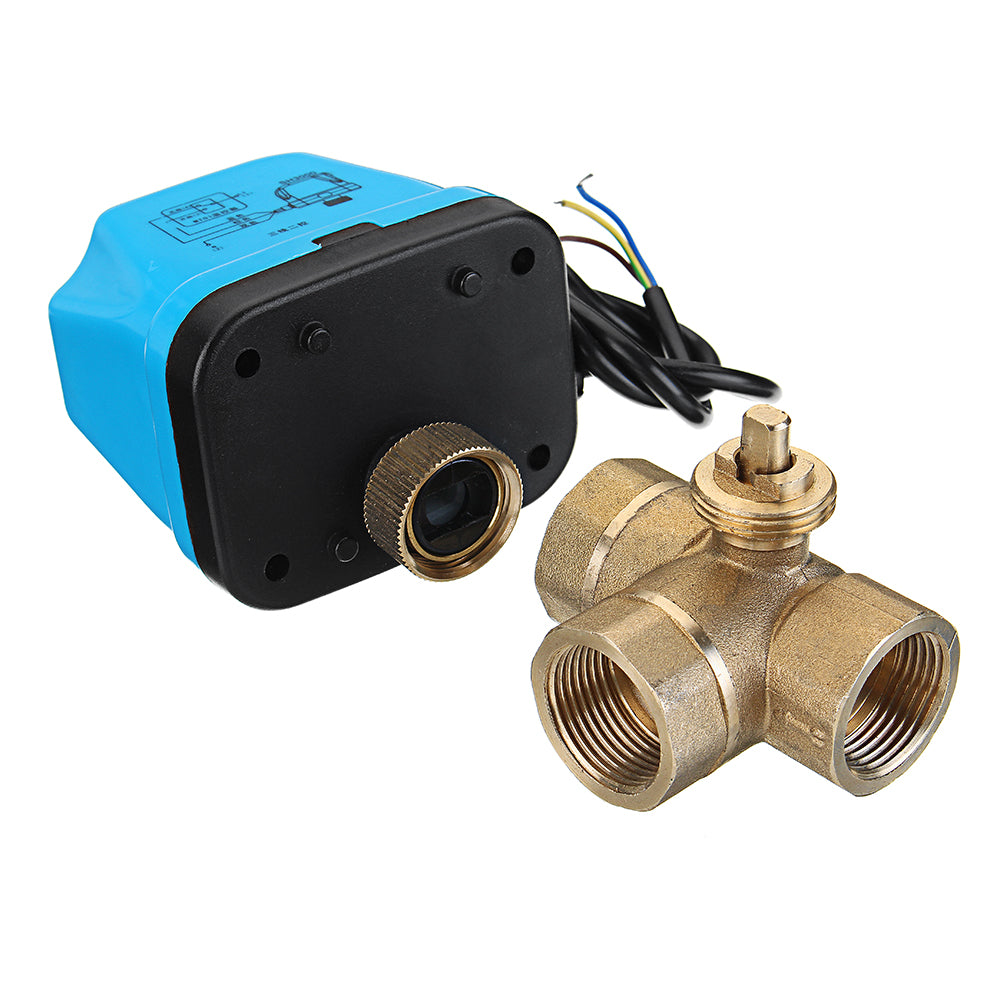

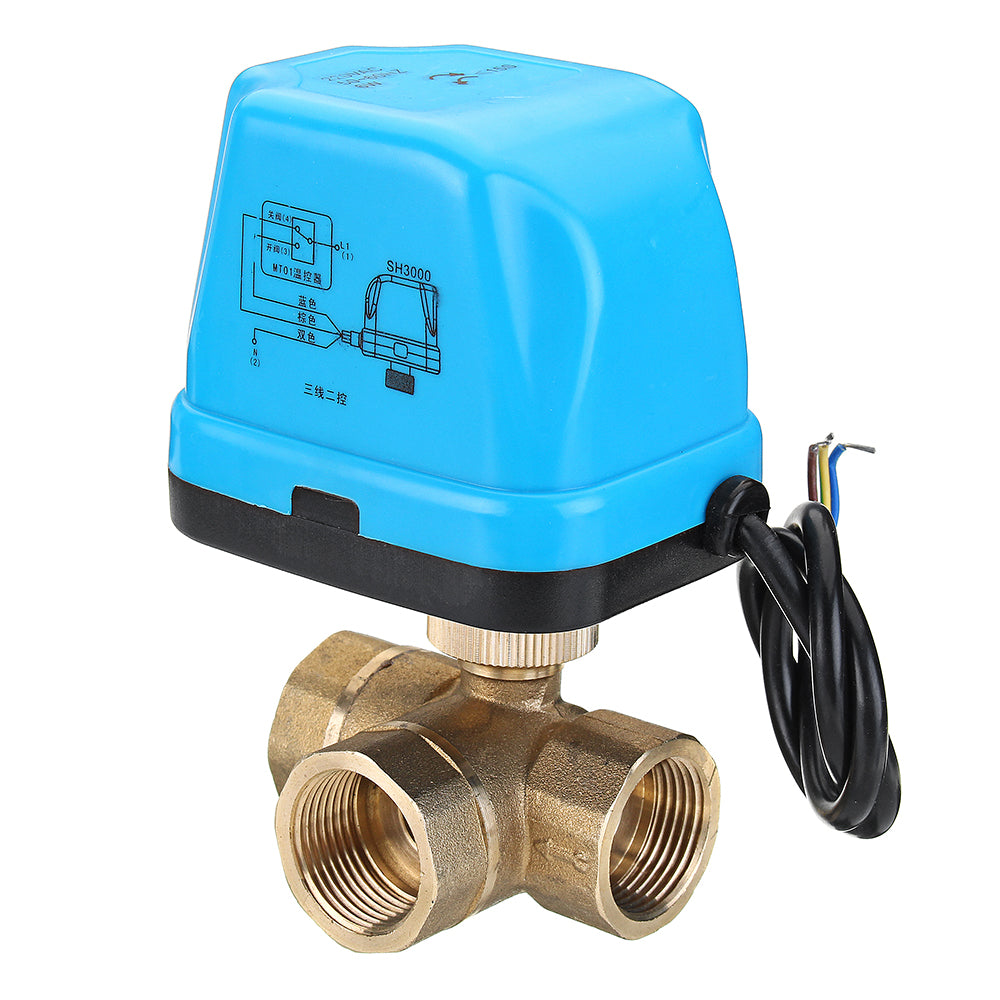

Description:This motorized ball valve is made of solid brass, will fully open or fully close in 5~15 seconds. Once in position, it automatically stops using energy. This is important as it will never overheat.This is a key difference between motorized ball valves and solenoid valves. Most solenoid valves are constantly energized, while these electrical ball valves are not, making them a safer and more eco-friendly option.
Specification:
| GeneralSpecification |
| Brand |
TMOK |
| Model |
Blue Shell |
| ValveType |
3 Way BallValve, T Type Ball Valve |
| Size |
1/2"(DN15),3/4"(DN20),1"(DN25),1-1/4"(DN32) |
| TechnicalParameters |
| BodyMaterial |
Brass |
| SealMaterial |
PTFE |
| ConnectorType |
GThreadFemale |
| NominalPressure |
1.6MPa(PN16) |
| FluidTemperature |
2~94℃ |
| EnvironmentTemperature |
0~60℃ |
| Voltage |
AC220V |
| WireControl |
3Wire |
| PowerConsumption |
6W(Onlyuseelectricityduringopeningorclosing.) |
| Open/CloseTime |
5~15s |
| BoreType |
FullPort |
| EnclosureRating |
IP65 |
Features:- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
- Female threads for connecting to male threaded pipes.
- Will fully open or close valve in 5~15 seconds, once in position, it automatically stops using energy.
- Save energy, reduces likelihood of overheating, long service life.
- Provided with four sizes from 1/2" to 1-1/4" for option, well fits for different applications.
Package Included:
1 x Motorized Brass 3 Way Ball Valve
