Specification:
Color: Silver
Material: Stainless Steel SUS
Max Contact Rating: 10W
Max switching voltage: 100V DC
Max switching current: 0.5A
Max breakdown voltage: 220V DC
Max carry current: 1A
Max contact resistance: 100mΩ
Max temperature: -30℃ - +125℃
Thread Dia(Approx): 10mm
Switch Total Length: 61mm/2.4"

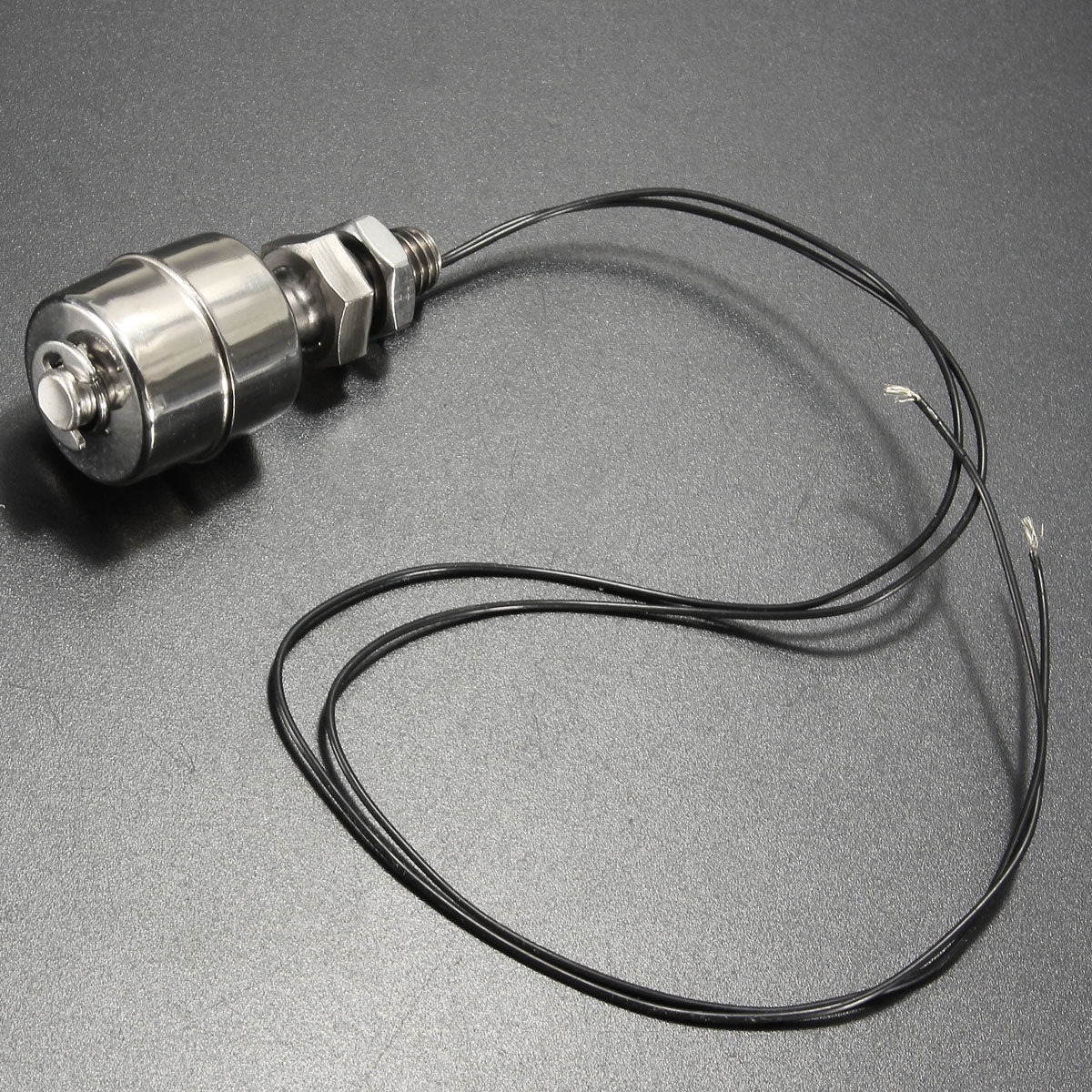

Cable Length: Approx 350mm/13.78"
Features:

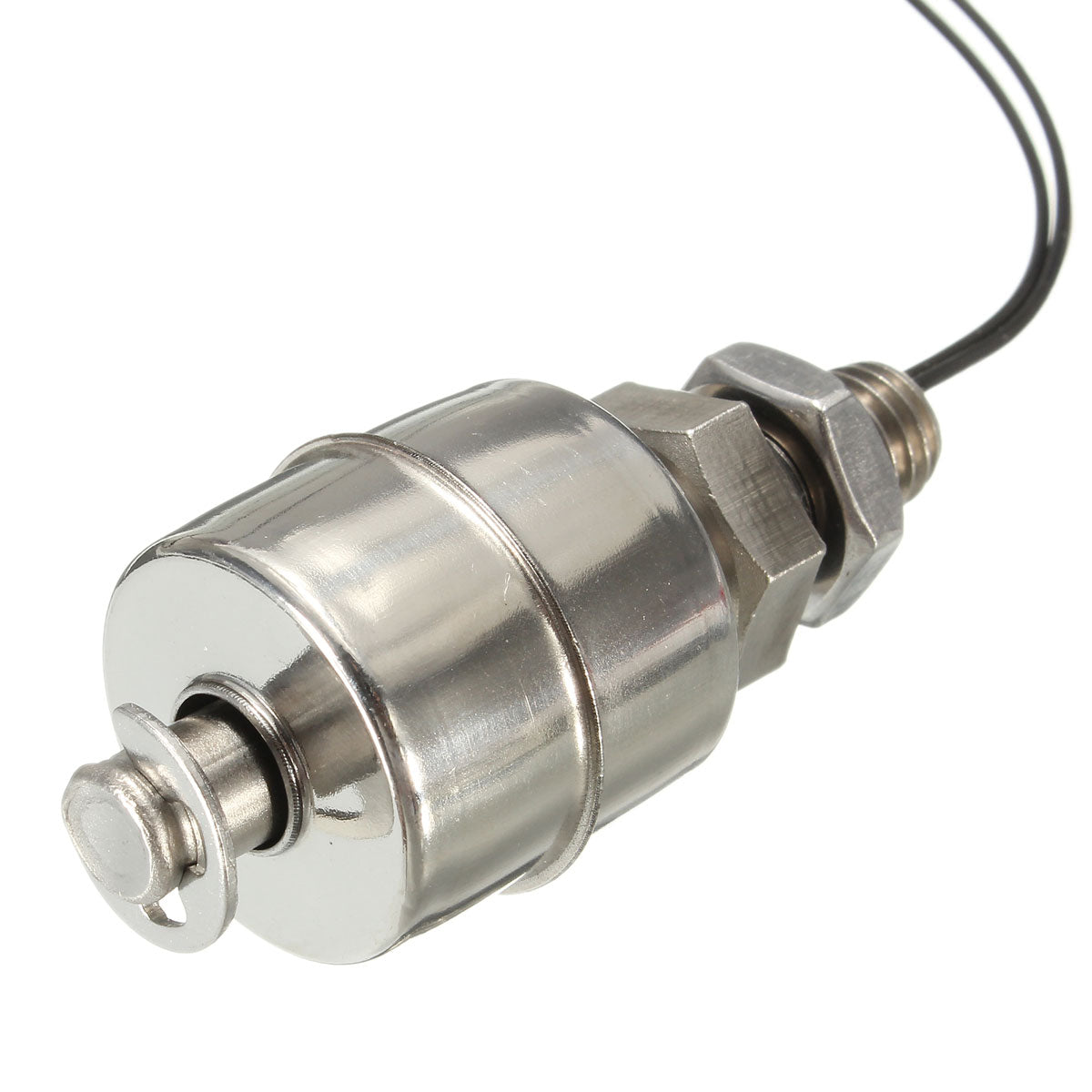

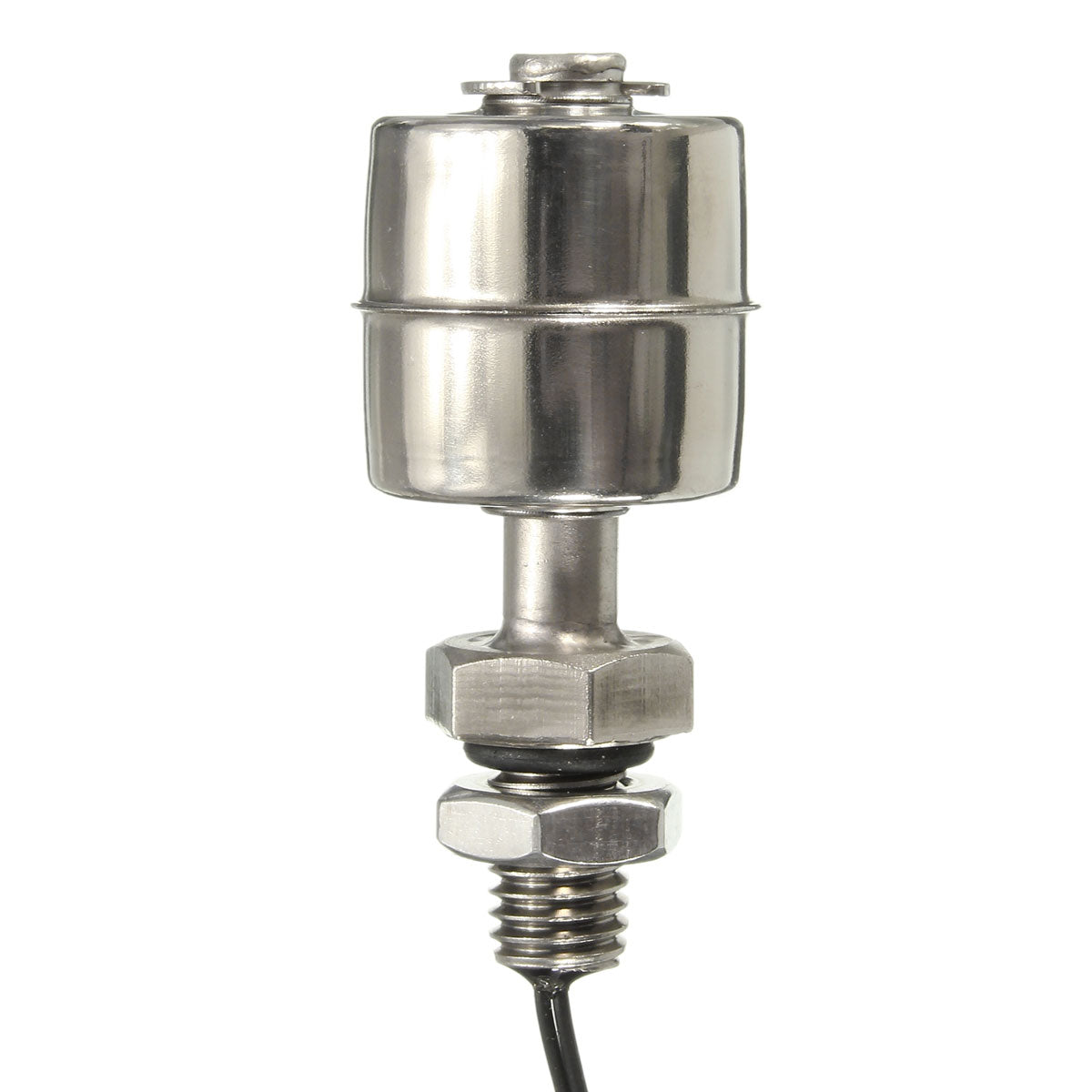

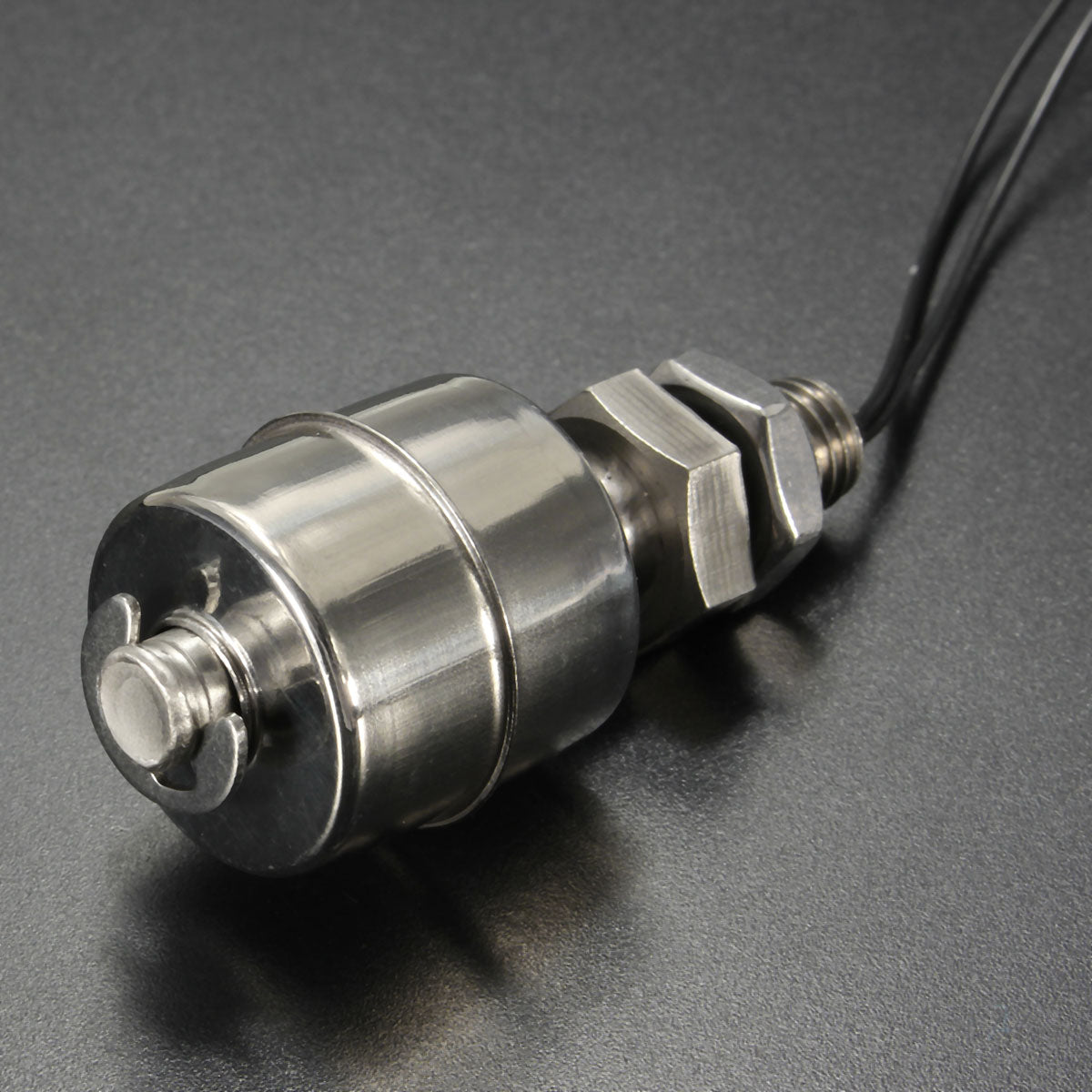

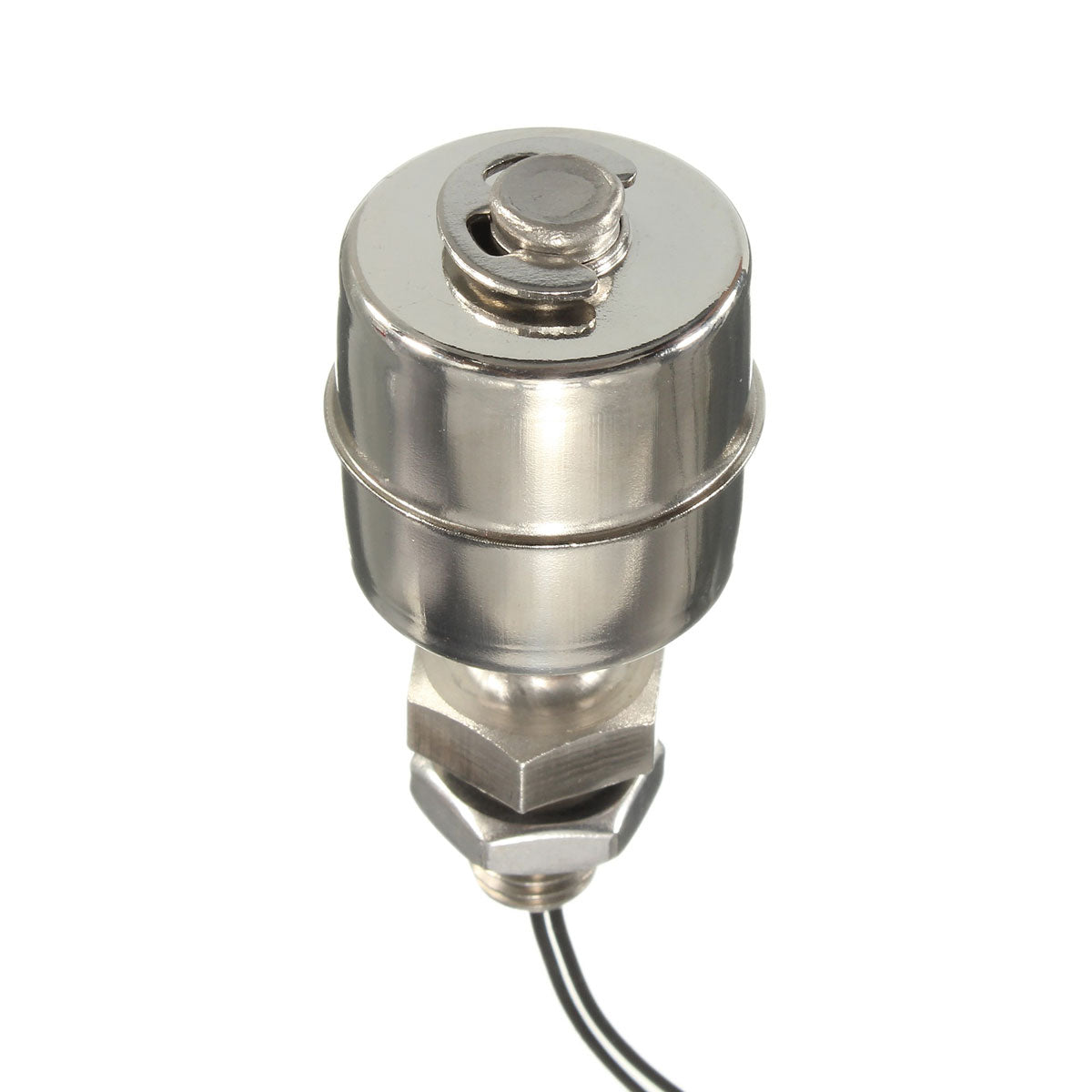

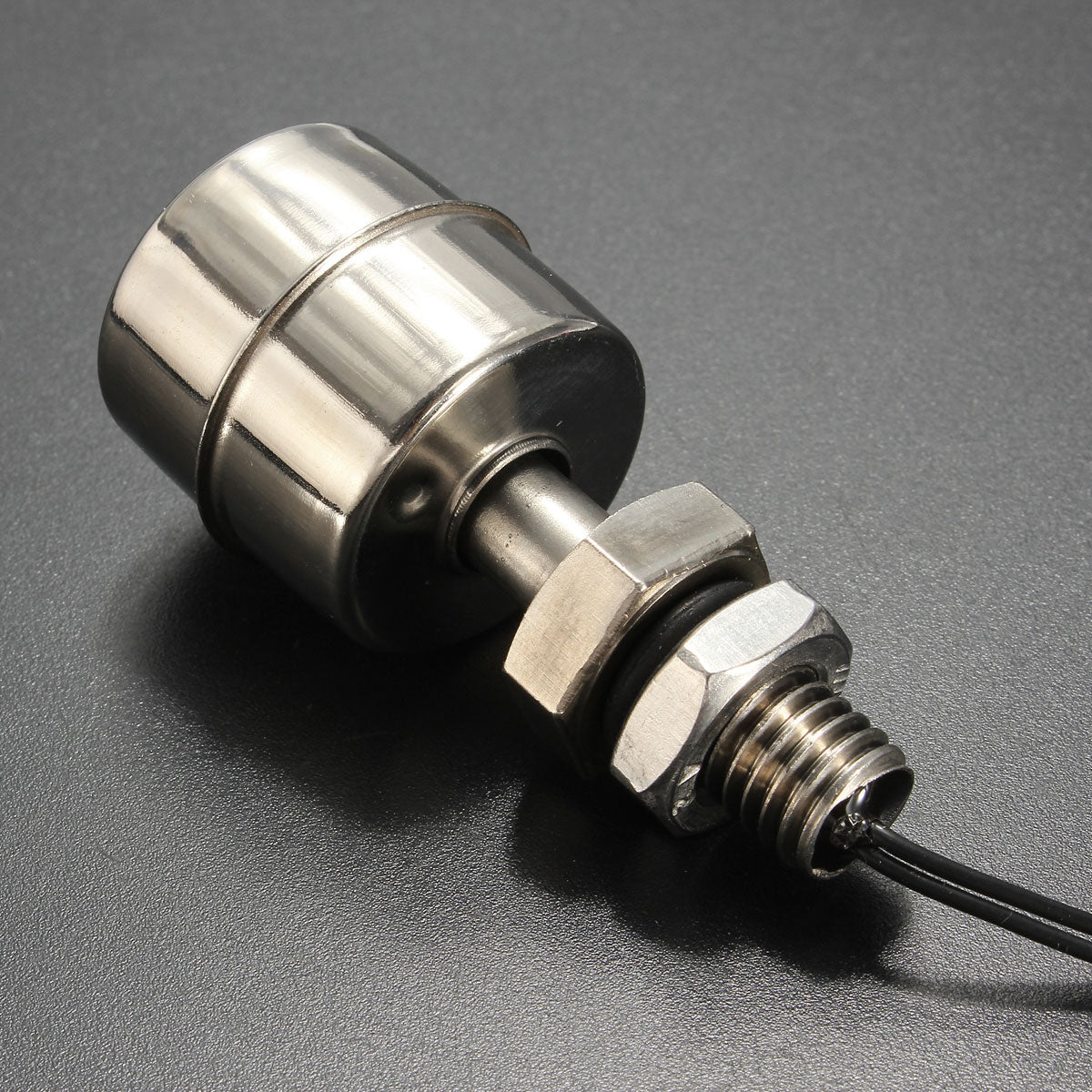

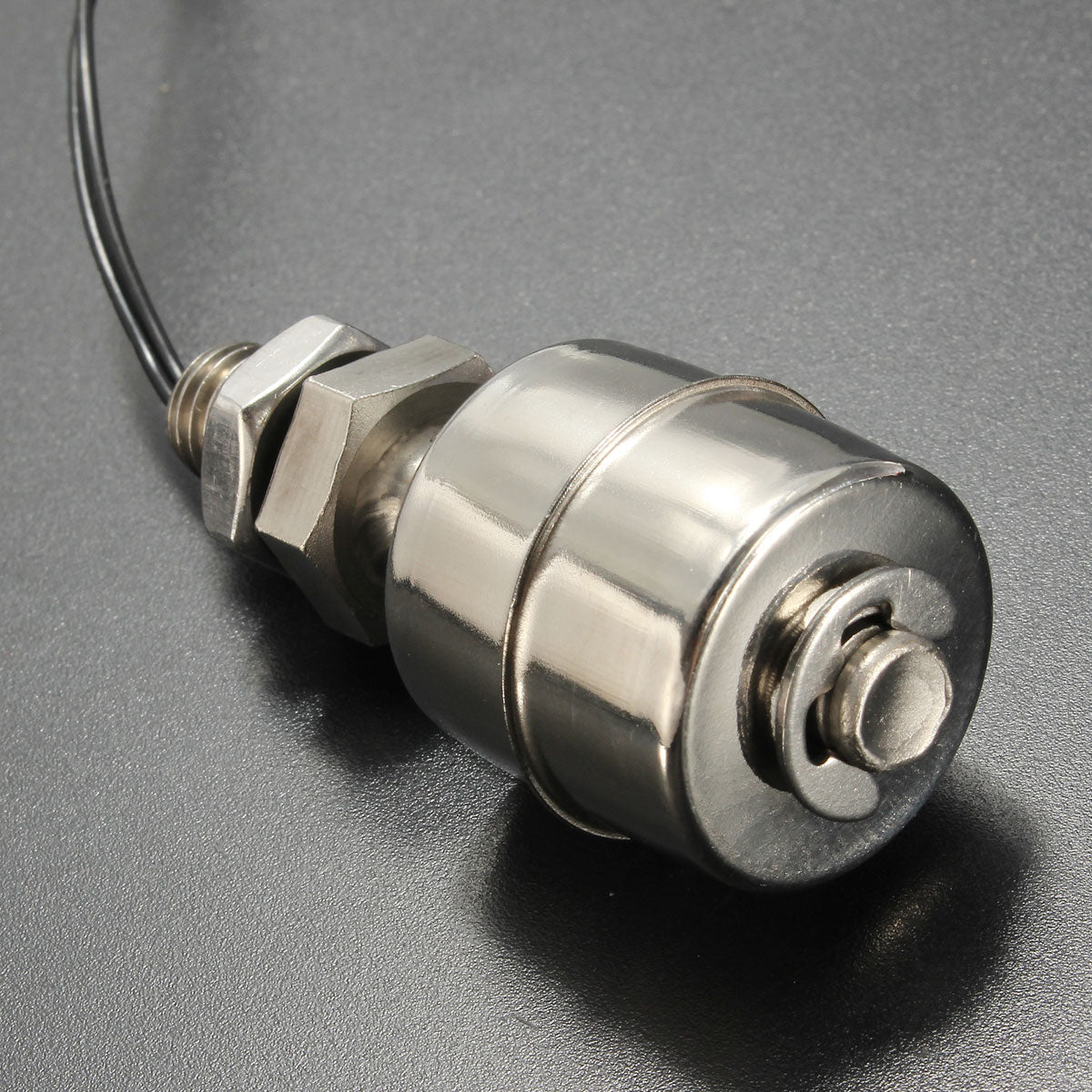

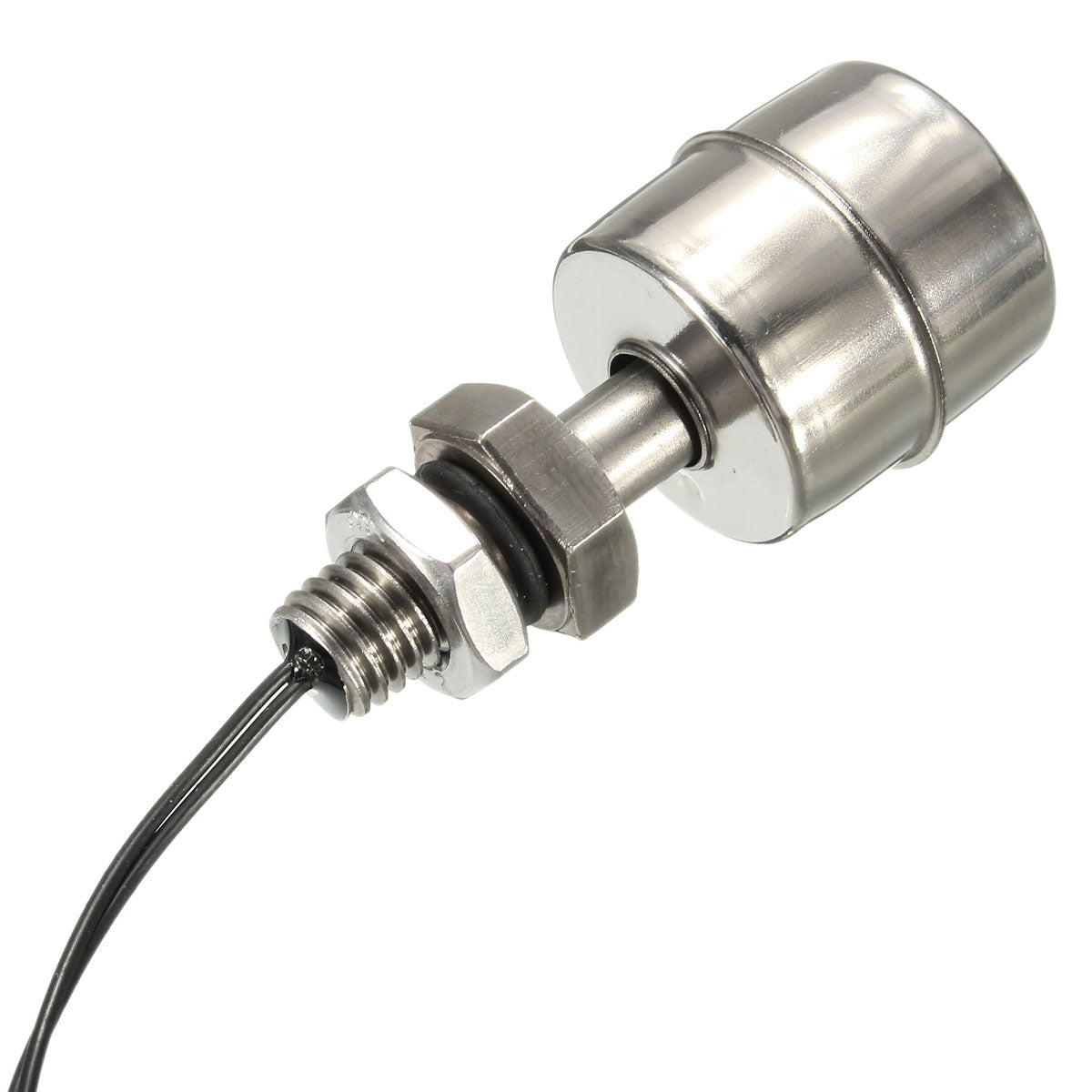

1. This is a mini stainless steel float switch,contains no mercury.
2. Light weight and simple working principle,high reliability.
3. This float switch is a device used to sense the level of liquid within a tank,the switch may activate a pump,an indicator,an alarm,or other device.
4. This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperture can be used in any environment.
5. The versatility of this vertically monted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water's rise or fall.
6. The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
Package Included:
1x Floating Switch
