Specification
a Material:Buna-nitrile (also called Buna-N)
Includes 382 pieces for covering 30 dash sizes
For use across a wide temperature range from -30 degrees F/-34 degrees C to 250 degrees F/121 degrees C
Meets Aerospace Standard AS568A for quality assurance

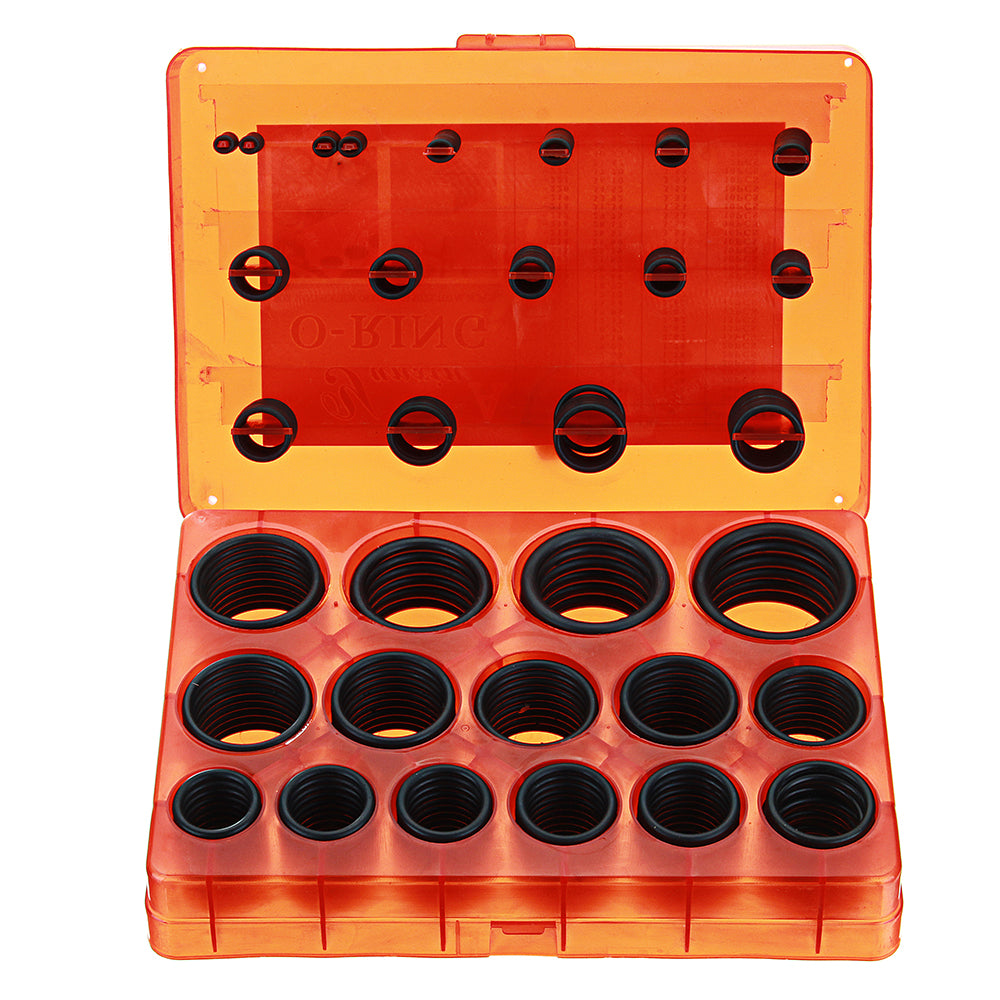

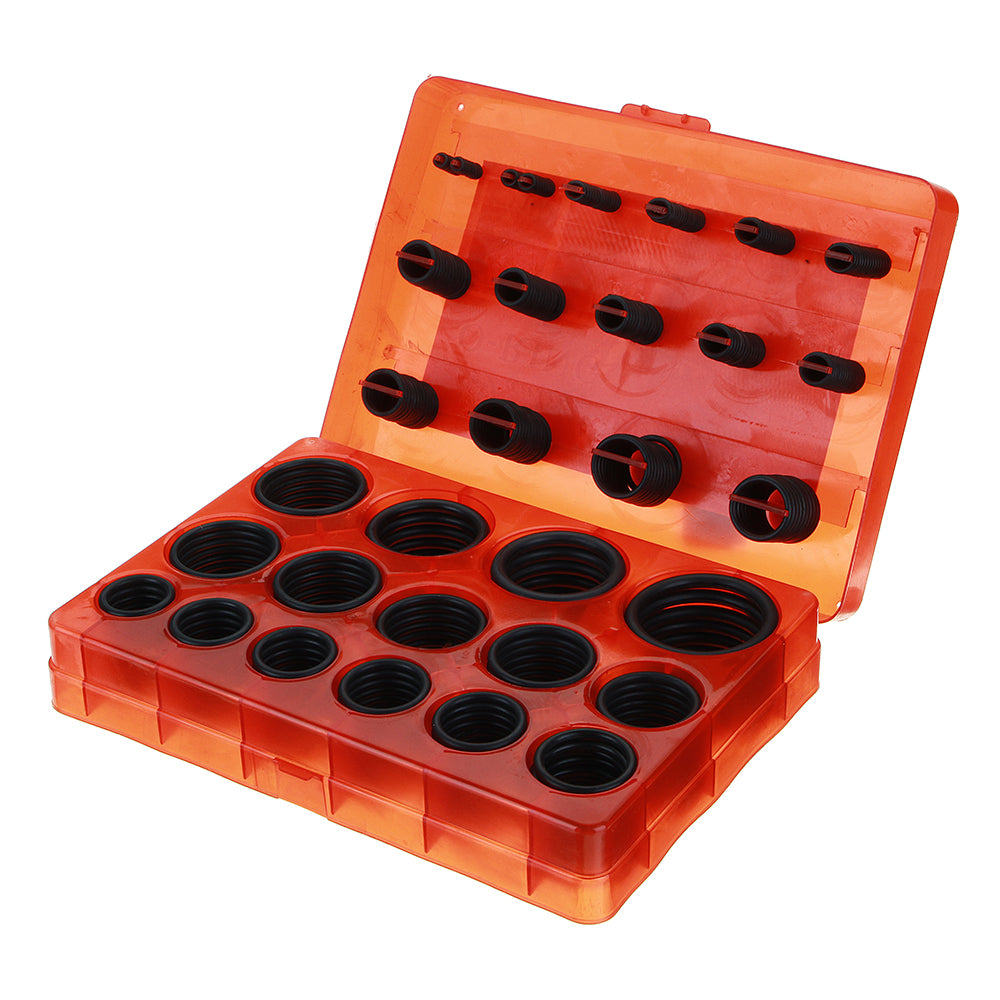

Plastic case for portability and organized storage
Features
a This O-Ring set is made of Black Buna-N, has a durometer of 70A, and includes 382 pieces covering 30 dash sizes. The rings have a Round cross-section and can be used across a wide temperature range from -40 degrees F (-40 degrees C) to 212 degrees F (100 degrees C). The rings come in a plastic storage case designed for organization and portability. Designed for use in a variety of sealing applications, this Buna-N O-Ring set meets standards defined by Aerospace Standard AS568A for quality assurance.
b The set includes the following O-Rings: 20 pieces each for dash sizes 006, 007, 008, 009, 010, 011, and 012; 13 pieces each for dash sizes 110, 111, 112, 113, 114, 115, and 116; 10 pieces each for dash sizes 210, 211, 212, 213, 214, 215, 216, 217, 218, 219, 220, 221, and 222; 7 pieces each for dash sizes 325, 326, and 327.
c Buna-nitrile can have high tensile strength, as well as abrasion, tear, and compression set resistance. It is compatible for use with petroleum, hexafluoroacetone (HFA), hexafluoro-2-butyne (HFB) and hydrofluorocarbon (HFC) fluids, vegetable oil, alcohol, acids, and aliphatic hydrocarbons. Buna-nitrile is vulnerable to acetone, ethers, esters, ozone, sunlight and weathering, and should not be used in ozone-generating electric motors, welding equipment, or in applications with exposure to UV light.
d The durometer hardness of this Buna-N O-Ring is 70A. Durometers measure the hardness of a material and its resistance to permanent indentation. A higher durometer value indicates greater resistance to indentation. On a scale of 0 to 100, a value of 0 indicates that a sample was completely penetrated, while a value of 100 shows no indentation in the sample. The letter following the number identifies the shore scale, which is either shore A or D. Shore A is used for rubber, while shore D is used for harder plastics.

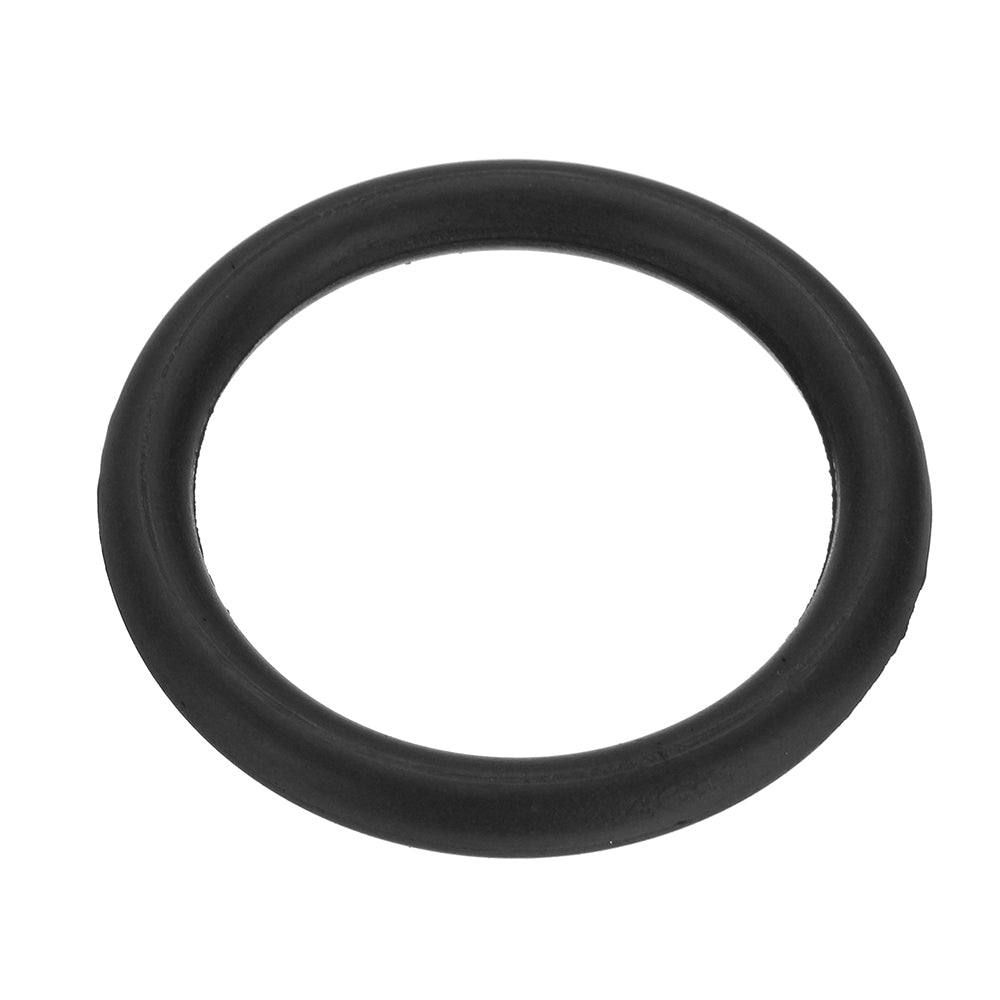

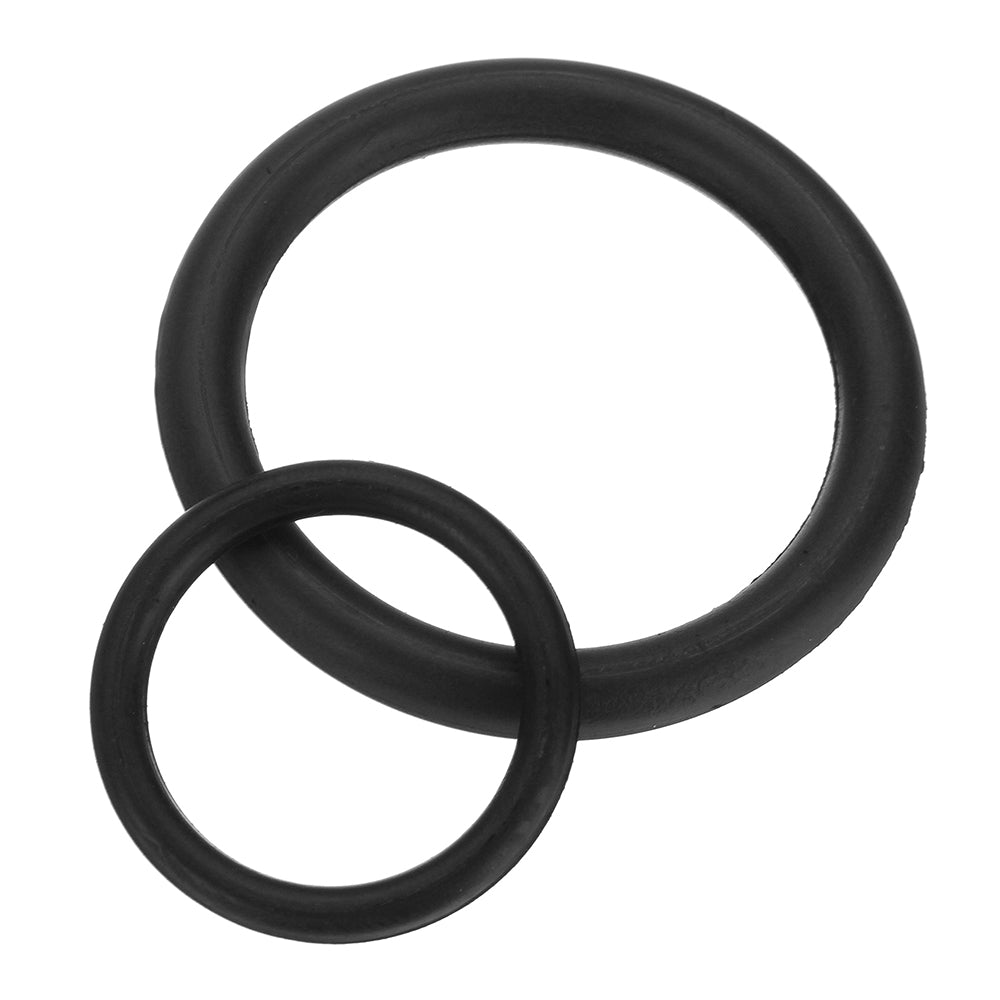

e O-rings provide a pressure and fluid seal between cylindrically shaped, overlapping mating surfaces and are commonly seen in engines, faucets, flanges, valves, and various cylinders. They are circular in shape, with a round cross section, and a hole in the center, similar to a doughnut. O-rings are available in various AS568A dash sizes as well as Metric sizes. O-ring size is defined by the inside diameter (ID), outisde diameter (OD), and cross-sectional (CS) diameter.
What's in the box?

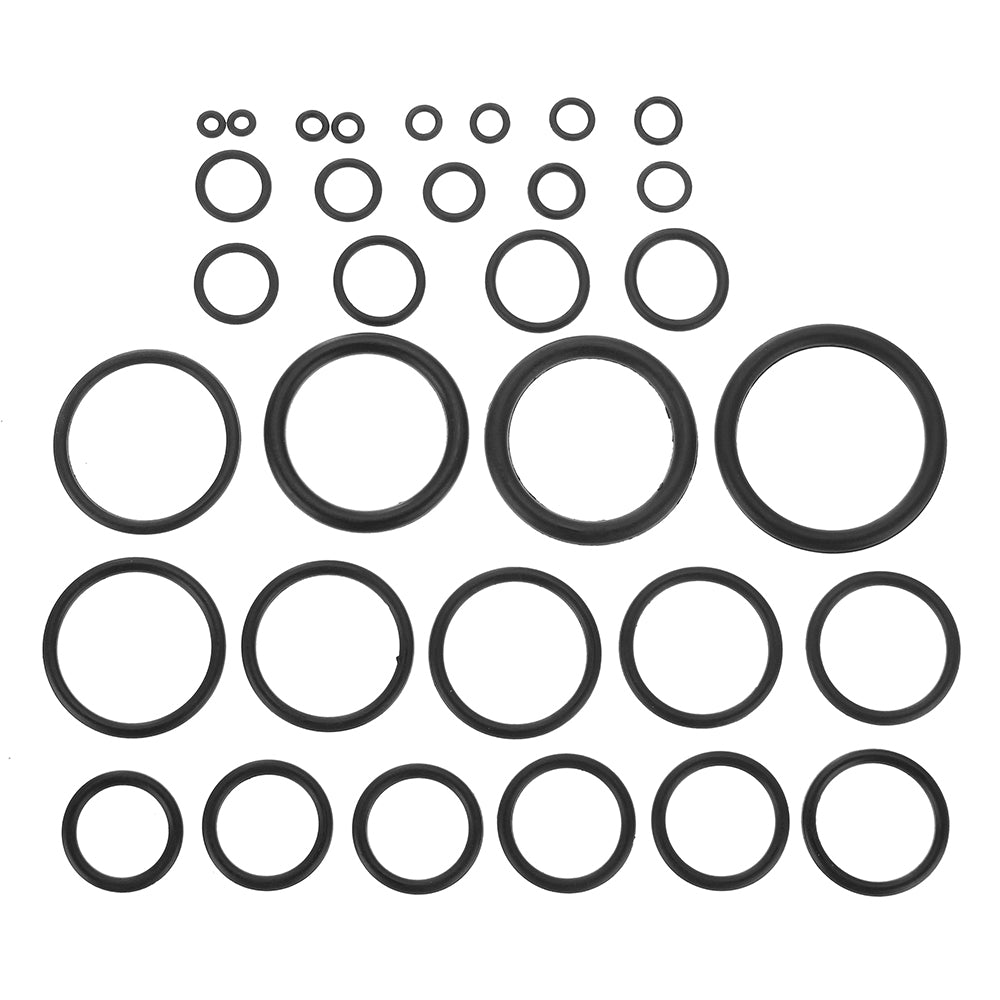

20 pieces each for dash sizes 006, 007, 008, 009, 010, 011, and 012
13 pieces each for dash sizes 110, 111, 112, 113, 114, 115, and 116
10 pieces each for dash sizes 210, 211, 212, 213, 214, 215, 216, 217, 218, 219, 220, 221, and 222
7 pieces each for dash sizes 325, 326, and 327

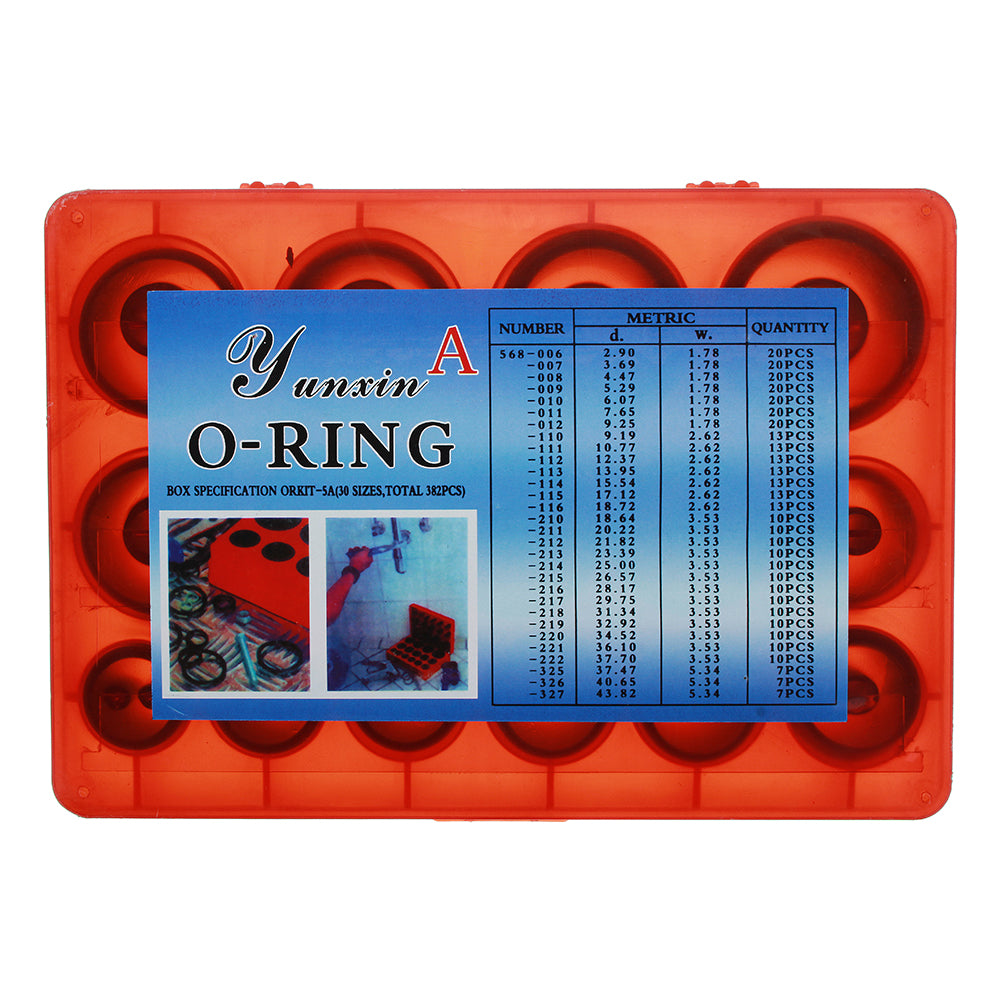

plastic storage case with label to identify sizes
Package Included
1×382Pcs Universal O-Ring Assortment Kit
